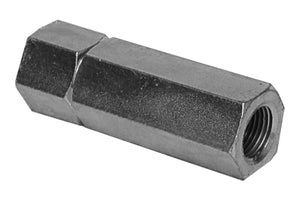

10012065 by Midland | High Pressure Check Valve | 65lb Cracking Pressure | 1-5/8-12 Female SAE x 1-5/8-12 Female SAE | Straight | Carbon Steel

Save $20.61

$132.42

$132.42 - $132.42

$132.42

$111.81

$111.81 - $111.81

$111.81

Midland Industries
High Pressure Check Valve - 65lb Cracking Pressure - Female SAE x Female SAE - Carbon Steel

Quantity

Specifications for Variant SKU: 10012065 Midland
Shape (Orientation):	Straight
Ends Configuration:	1-5/8in Female SAE 45 Flare, 1-5/8in Female SAE 45 Flare, Some Ends Match
Material(s):	Carbon Steel

Construction:
Hard Seat Carbon Steel


Part Number	A Size	B	C	Rated Flow GPM	PSI
10011265	1-1/6-12 SAE	4.29"	1.50"	30	3,000
10011665	1-5/16-12 SAE	5.00"	1.81"	36	3,000
10012065	1-5/8-12 SAE	5.20"	2.41"	50	3,000
10012465	1-7/8-12 SAE	5.20"	2.56"	60	3,000

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
