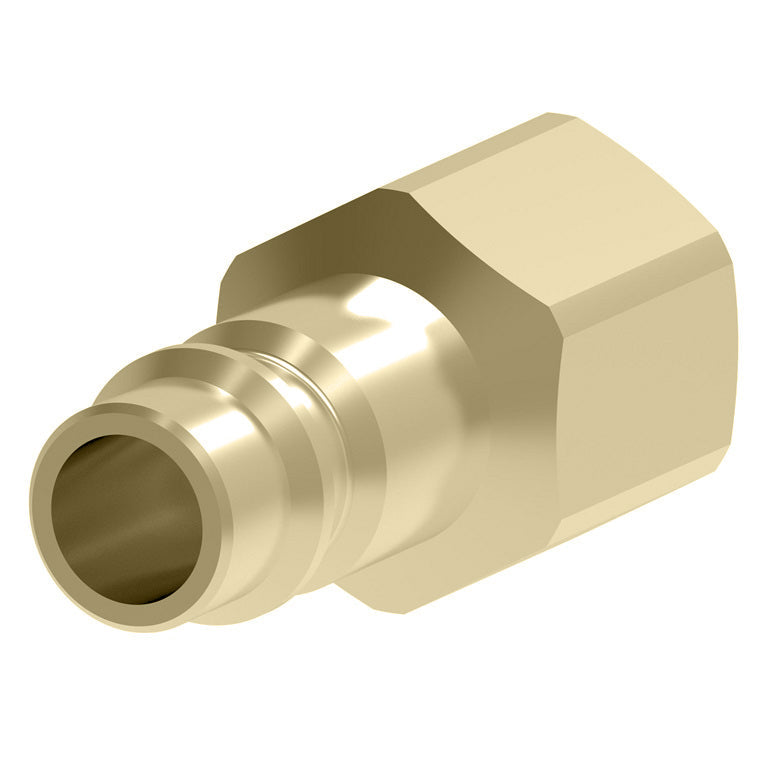

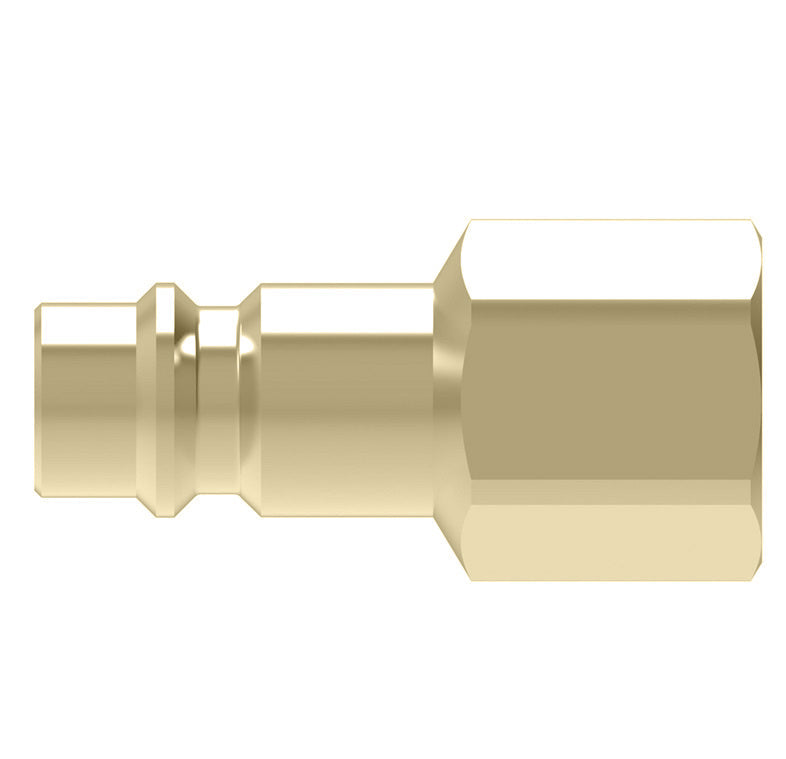

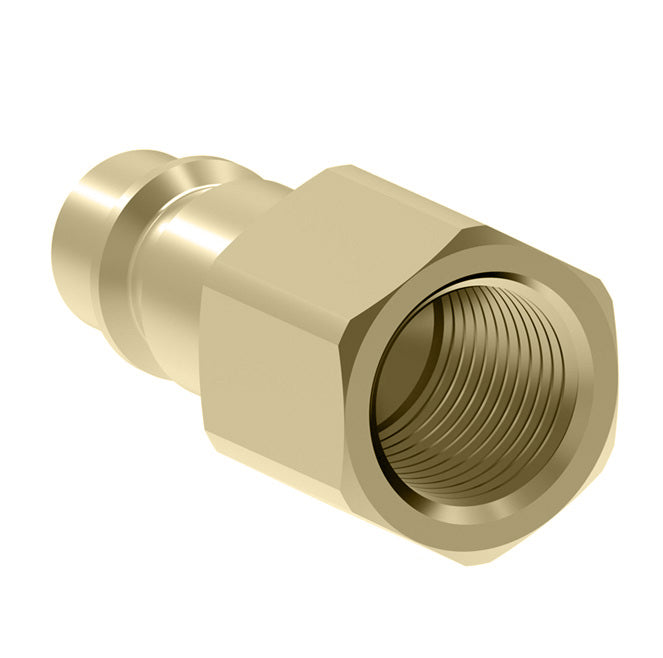

100510 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Gas-Mate Series | 3/4" Female NPTF x 3/4" Body Size | Plug | Brass
100510 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Gas-Mate Series | 3/4" Female NPTF x 3/4" Body Size | Plug | Brass
100510 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Gas-Mate Series | 3/4" Female NPTF x 3/4" Body Size | Plug | Brass
100510 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Gas-Mate Series | 3/4" Female NPTF x 3/4" Body Size | Plug | Brass

100510 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Gas-Mate Series | 3/4" Female NPTF x 3/4" Body Size | Plug | Brass

$30.82 - $30.82
$30.82
$30.82 - $30.82
$30.82

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | Gas-Mate Series

Quick Disconnect for Pneumatic Applications.

Danfoss' Gas-Mate™ Series quick disconnect couplings are a one-way shut-off safety couplings designed for the connection of gas fired devices or applications.
Specifications for Variant SKU: 100510 Danfoss
Brand: Hansen
Series: Gas-Mate Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Connect and disconnect without the need for wrenches.
  • Automatic shut off when plug is removed from socket.
  • In case of fire, heat sensitive plug allows socket valve to close, stopping gas flow.
Applications & Markets:
  • Industrial
  • Fuel Gas Systems
  • Food & Beverage
Materials:
  • Standard body material: Brass
  • Standard seal material: Buna-N
Specifications:
  • Tested to meet operating temperatures -40°F to 200°F (-40°C to 93°C) in sizes 3/8", 1/2", 3/4", and 1" when used in accordance with the CSA standard ANSI Z21.41b-2010/CSA 6.9b-2010 in both indoor and outdoor applications.
  • Complies with the requirements of ANSI Z21.41B-2010/CSA 6.96-2010. (CSA design certified, in both the United States and Canada, for natural gas, manufactured gas, liquified petroleum and LP gas-air mixtures at pressures not in excess of 1/2 psig (3.5 kPa).)
  • Please note that the 1-1/4" size coupling is rated for indoor use only.
Body Size Max. Operating Pressure Min. Burst Pressure
All Sizes 0.03 bar 0.50 psi 68 bar 1,000 psi
Capacities
Body Size Socket/Female P/N Plug/Male P/N Capacity*
3/8" 100006E 100506 60,000
1/2" 100008 100508 90,000
3/4" 100010 100510 245,000
1" 100012E 100512 310,000
1-1/4" GMS1250FH GMP1250F 500,000

* Capacity is based on natural gas having a specific gravity of 0.64 and heat capacity of 1,000 BTU per cubic foot. Inlet pressure is 12 inches water column and the pressure drop is 0.3 inch water column.
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
Socket/Female
(Figure 3)
Plug/Male
(Figure 4)
Gas-Mate Series | Socket
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
A B Across Flats/Hex
100006E Socket/Female 3/8" 3/8" 3/8-18 Female NPTF 1 2.44"
(62.0mm)		 1.13"
(28.7mm)		 0.87"
(22.1mm)
100008 Socket/Female 1/2" 1/2" 1/2-14 Female NPTF 1 2.84"
(72.1mm)		 1.38"
(35.1mm)		 1.00"
(25.4mm)
100010 Socket/Female 3/4" 3/4" 3/4-14 Female NPTF 1 3.17"
(80.5mm)		 1.75"
(44.5mm)		 1.31"
(33.3mm)
100012E Socket/Female 1" 1" 1-11 1/2 Female NPTF 1 3.94"
(100.1mm)		 2.13"
(54.1mm)		 1.50"
(38.1mm)
GMS1250FH* Socket/Female 1-1/4" 1-1/4" 1-1/4-11-1/2 Female NPTF 3 4.15"
(105.4mm)		 2.28"
(57.9mm)		 2.00"
(50.8mm)
Gas-Mate Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
A B Across Flats/Hex
100506 Plug/Male 3/8" 3/8" 3/8-18 Female NPTF 2 1.59"
(40.4mm)		 0.94"
(23.9mm)		 0.81"
(20.6mm)
100508 Plug/Male 1/2" 1/2" 1/2-14 Female NPTF 2 1.94"
(49.3mm)		 1.15"
(29.2mm)		 1.00"
(25.4mm)
100510 Plug/Male 3/4" 3/4" 3/4-14 Female NPTF 2 2.06"
(52.3mm)		 1.51"
(38.4mm)		 1.31"
(33.3mm)
100512 Plug/Male 1" 1" 1-11-1/2 Female NPTF 2 2.47"
(62.7mm)		 1.73"
(43.9mm)		 1.50"
(38.1mm)
GMP1250F* Plug/Male 1-1/4" 1-1/4" 1-1/4-11-1/2 Female NPTF 4 2.44"
(62.0mm)		 2.17"
(55.1mm)		 1.88"
(47.8mm)

*For indoor use only
