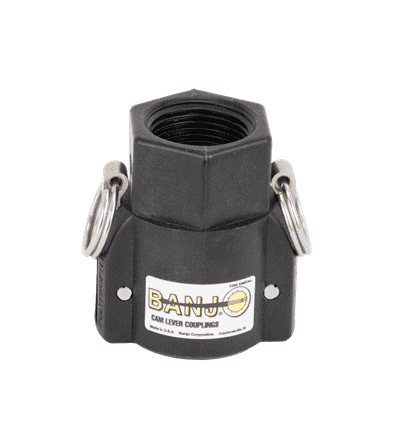

100DB Banjo Polypropylene Cam Lever Coupling - Part D - 1" Female Coupling x 1" Female Thread - British Standard Pipe

100DB by Banjo | Cam Lever Coupling | Part D | 1" Female Coupling x 1" Female Thread BSP | 75 PSI | Polypropylene | Pack of 10

Save $61.15

$152.88

$152.88 - $152.88

$152.88

$91.73

$91.73 - $91.73

$91.73

Banjo Cam Lever Couplings - Polypropylene Cam Lever Couplings - 1" Series

Package Quantity: 10 EA

Quantity

Specifications for Variant SKU: 100DB Banjo \| 10 \|
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	1in Female Cam & Groove, 1in Female BSPP
Material(s):	Polypropylene
Seal Material(s):	EPDM

Applications:
Agriculture Industrial Fluids
Features:
Stainless steel rings, arms & pins Most complete line of polypropylene couplings available Versatile - interchangeable with all types of cam lever couplers Precision molded - insures a uniform and accurate fit Durable - Polypropylene is glass reinforced for rugged strength and durability Smooth operating - finger rings are designed for easy opening of cam levers Complete series of 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3" and 4" NPT thread BSP threads available 1" - 3" sizes (excluding 1-1/4") Economical and superior in performance Standard with EPDM gaskets. Buna "N", and FKM (viton type) also available Note: 303B & 303C & All 4" Couplings have 3 Arms for POSITIVE SEAL! WARNING: Couplings should not be disconnected under pressure or with liquid in the line.

Part Number	Type	End Type	Max PSI	Gasket
100A	Part A	1" Male Adapter x 1" Female NPT	300 PSI	None
100AB	Part A	1" Male Adapter x 1" Female Thread-British Standard Pipe	75 PSI	None
100B	Part B	1" Female Coupler x 1" Male NPT	300 PSI	EPDM
100BB	Part B	1" Male Adapter x 1" Male Thread British Standard Pipe	75 PSI	None
100C	Part C	1" Female Coupler x 1" Hose Shank	125 PSI	EPDM
100D	Part D	1" Female Coupler x 1" Female NPT	300 PSI	EPDM
100DB	Part D	1" Male Adapter x 1" Female Thread British Standard Pipe	75 PSI	None
100E	Part E	1" Male Adapter x 1" Hose Shank	300 PSI	None
100F	Part F	1" Male Adapter x 1" Male NPT	300 PSI	None
100FB	Part F	1" Male Adapter x 1" Male British Standard Pipe	75 PSI	None
100125CAP	Part CAP	1" Cap - Male Adapter	300 PSI	EPDM
100125PL	Part PL	1" Plug - Female Coupler	300 PSI	None

Note: 1/4", 3/8" and 1/2" series couplings interchange with 3/4" size couplings. Coupling ends are 3/4" size 1-1/4" series couplings interchange with 1" size couplings. Coupling ends are 1" size. 1-1/2" x 1-1/4" couplings interchange with 1-1/2" size couplings. Coupling ends are 1-1/2" size

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
