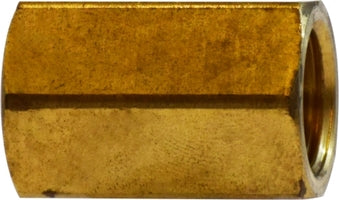

10136 (10-136) Midland SAE 45° Flare Fitting - Union - 3/8" Female SAE 45° Flare x 3/8" Female SAE 45° Flare - Brass

10136 by Midland | SAE 45° Flare Fitting | Union | 3/8" Female SAE 45° Flare x 3/8" Female SAE 45° Flare | Brass

Save $9.28 Save $9.28
$23.20
$23.20 - $23.20
$23.20
$13.92
$13.92 - $13.92
$13.92

Midland Industries
Brass Fitting - SAE 45° Flare - Female Union - Brass

Note: Use with Copper Gasket

Inventory @ Manufacturers Warehouse: 160 Units
Specifications for Variant SKU: 10136 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Female SAE 45 Flare, 3/8in Female SAE 45 Flare, Some Ends Match
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards, Applicable Military Standards
Applications: LP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems. Used With: Copper, Brass, Aluminum and Steel hydraulic tubing that can be flared.
SAE Rating: SAE# 010107 Conformance: Meets specifications and standards of ASA, ASME, SAE and MS (Military standards).
Vibration: Good resistance - use long nut when greater vibration resistance is required. Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures
Tolerance: +/- .03 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical. Lead Free: Not Lead Free
Working Pressure Ranges:
  • Temperature and type of tubing used are important factors. However, the following table is a good guide for proper selection. Temperature 730F with copper tubing:
Assembly Instructions:
  • 1) Cut tubing to desired length. Make sure all burrs are removed and ends are cut square.
  • 2) Slide nut on tube. Threaded end "A" of nut must face out.
  • 3) Flare end of tube with a 450 flaring tool.
    • A) Measure flare diameter
    • B) Examine flare for excessive thin out.
  • 4) Lubricate threads and assemble to fitting body. Nut should be turned hand tight.
  • 5) Tighten assembly with wrench until a solid feeling is encountered. From that point, apply a one-sixth turn.
  • Note: Do not over-torque as it may damage the fitting or split the tubing at the flare.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4"
Thread Size B 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-16 3/4-16 7/8-14 1-1/16-14
Crossover Series:
600 600F 2310 U4 660HD 32
Part Number Female Flare x Female Flare A Hex
10135
(10-135)		 1/4" 1.00" 0.62"
10136
(10-136)		 3/8" 1.25" 0.81"
10137
(10-137)		 1/2" 1.43" 0.94"
10138 5/8" 1.69" 1.07"
