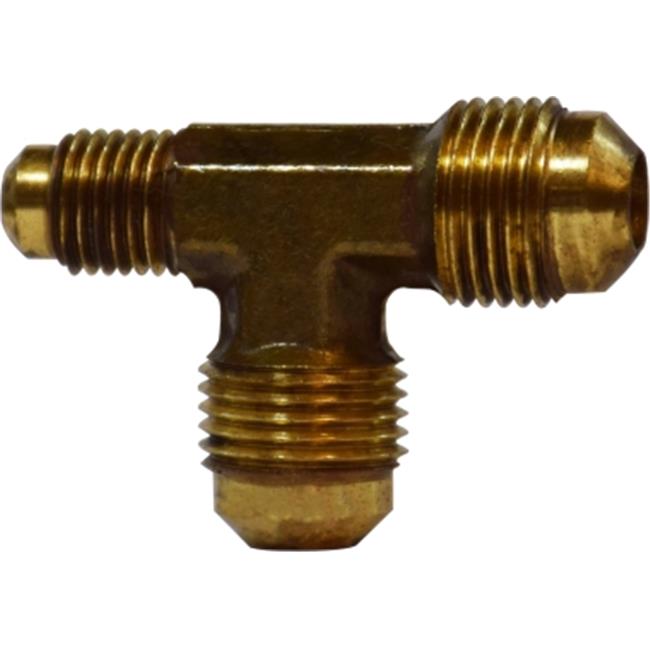

Brass Fitting - SAE 45° Flare - Reducing Tee - Brass
Specifications for Variant SKU: 10197 Midland
Shape (Orientation): Tee
Ends Configuration: 3/4in Male SAE 45 Flare, 3/4in Male SAE 45 Flare, 5/8in Male SAE 45 Flare, Some Ends Match
Material(s): Brass
Applicable Specs & Approvals: ASA, ASME, SAE, MS (Military Standards)
Applications: LP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems. Used With: Copper, Brass, Aluminum and Steel hydraulic tubing that can be flared.
SAE Rating: N/A Conformance: Meets specifications and standards of ASA, ASME, SAE and MS (Military standards).
Vibration: Good resistance - use long nut when greater vibration resistance is required. Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures
Tolerance: +/- .03 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical. Lead Free: Not Lead Free
Working Pressure Ranges:
  • Temperature and type of tubing used are important factors. However, the following table is a good guide for proper selection. Temperature 730F with copper tubing:
Assembly Instructions:
  • 1) Cut tubing to desired length. Make sure all burrs are removed and ends are cut square.
  • 2) Slide nut on tube. Threaded end "A" of nut must face out.
  • 3) Flare end of tube with a 450 flaring tool.
    • A) Measure flare diameter
    • B) Examine flare for excessive thin out.
  • 4) Lubricate threads and assemble to fitting body. Nut should be turned hand tight.
  • 5) Tighten assembly with wrench until a solid feeling is encountered. From that point, apply a one-sixth turn.
  • Note: Do not over-torque as it may damage the fitting or split the tubing at the flare.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4"
Thread Size B 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-16 3/4-16 7/8-14 1-1/16-14
Crossover Series:
44FR 509 144F TR2 659F 684F 44R
Part Number Thread Size UNF
1 x 2 x 3		 A C Body Size Approx. Weight
(Lbs.)
10170
(10-170)		 1/4" x 1/4" x 3/8" 0.91" 1.00" 0.44" 0.10
10171
(10-171)		 5/16" x 5/16" x 1/4" 0.94" 0.94" 0.44" 0.12
10172
(10-172)		 3/8" x 1/4" x 1/4" 0.91" 1.00" 0.44" 0.10
10173
(10-173)		 3/8" x 1/4" x 3/8" 1.00" 0.91" 0.44" 0.12
10174
(10-174)		 3/8" x 3/8" x 1/4" 1.00" 0.88" 0.44" 0.11
10175
(10-175)		 3/8" x 3/8" x 1/2" 1.00" 1.19" 0.59" 0.14
10176
(10-176)		 3/8" x 3/8" x 5/8" 1.16" 1.44" 0.69" 0.16
10178
(10-178)		 1/2" x 3/8" x 3/8" 1.16" 1.12" 0.59" 0.18
10179
(10-179)		 1/2" x 3/8" x 1/2" 1.16" 1.09" 0.59" 0.18
10180
(10-180)		 1/2" x 1/2" x 1/4" 1.16" 0.97" 0.59" 0.18
10181
(10-181)		 1/2" x 1/2" x 3/8" 1.16" 1.12" 0.59" 0.19
10182
(10-182)		 1/2" x 1/2" x 5/8" 1.28" 1.41" 0.69" 0.28
10187
(10-187)		 5/8" x 1/2" x 5/8" 1.44" 1.33" 0.69" 0.27
10188
(10-188)		 5/8" x 5/8" x 3/8" 1.38" 1.16" 0.69" 0.30
10189
(10-189)		 5/8" x 5/8" x 1/2" 1.38" 1.28" 0.69" 0.28
10197
(10-197)		 3/4" x 3/4" x 5/8" - - - 0.36
