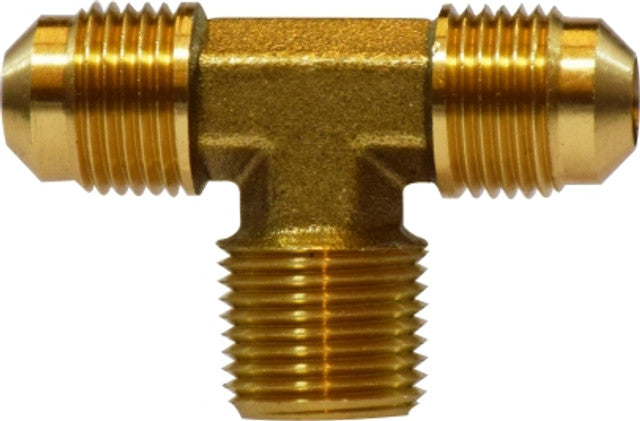

10210 (10-210) Midland SAE 45° Flare Fitting - Male Branch Forged Tee - 3/8" Male SAE 45° Flare x 3/8" Male SAE 45° Flare x 1/4" Male NPT - Brass

10210 by Midland | SAE 45° Flare Fitting | Branch Forged | 3/8" Male SAE 45° Flare x 3/8" Male SAE 45° Flare x 1/4" Male NPT | Tee | Brass

Save $3.27

$8.17

$8.17 - $8.17

$8.17

$4.90

$4.90 - $4.90

$4.90

Midland Industries
Brass Fitting - SAE 45° Flare - Male Branch Tee - Brass

Inventory @ Manufacturers Warehouse: 1030 Units

Specifications for Variant SKU: 10210 Midland
Shape (Orientation):	Tee
Ends Configuration:	3/8in Male SAE 45 Flare, 3/8in Male SAE 45 Flare, 1/4in Male NPT, Some Ends Match
Material(s):	Brass
Applicable Specs & Approvals:	Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards, Applicable Military Standards

Applications:	LP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems.	Used With:	Copper, Brass, Aluminum and Steel hydraulic tubing that can be flared.
SAE Rating:	SAE# 010425	Conformance:	Meets specifications and standards of ASA, ASME, SAE and MS (Military standards).
Vibration:	Good resistance - use long nut when greater vibration resistance is required.	Temperature Range:	-65°F to +250°F (-53°C to +121°C) range at maximum operating pressures
Tolerance:	+/- .03 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical.	Lead Free:	Not Lead Free

Working Pressure Ranges:
Temperature and type of tubing used are important factors. However, the following table is a good guide for proper selection. Temperature 730F with copper tubing:
Assembly Instructions:
1) Cut tubing to desired length. Make sure all burrs are removed and ends are cut square. 2) Slide nut on tube. Threaded end "A" of nut must face out. 3) Flare end of tube with a 450 flaring tool. A) Measure flare diameter B) Examine flare for excessive thin out. 4) Lubricate threads and assemble to fitting body. Nut should be turned hand tight. 5) Tighten assembly with wrench until a solid feeling is encountered. From that point, apply a one-sixth turn. Note: Do not over-torque as it may damage the fitting or split the tubing at the flare.


Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"	3/4"
Thread Size B	5/16-24	3/8-24	7/16-20	1/2-20	5/8-18	11/16-16	3/4-16	7/8-14	1-1/16-14

Crossover Series:
45R	245	405	T1	145F	45


Part Number	Male Flare (1) x Male Flare (2) x Male NPT (3)	A	B	Body Size	Approx. Weight (Lbs.)
10203 (10-203)	3/16" x 3/16" x 1/8"	0.75"	0.75"	0.36"	0.10
10204 (10-204)	1/4" x 1/4" x 1/8"	0.78"	0.75"	0.36"	0.05
10205 (10-205)	1/4" x 1/4" x 1/4"	0.88"	0.88"	0.44"	0.08
10206 (10-206)	1/4" x 1/4" x 3/8"	0.92"	1.00"	0.47"	0.10
10207 (10-207)	5/16" x 5/16" x 1/8"	0.89"	0.78"	0.44"	0.08
10208 (10-208)	5/16" x 5/16" x 1/4"	0.94"	0.94"	0.44"	0.08
10209 (10-209)	3/8" x 3/8" x 1/8"	1.00"	0.91"	0.44"	0.14
10210 (10-210)	3/8" x 3/8" x 1/4"	1.00"	0.94"	0.44"	0.12
10211 (10-211)	3/8" x 3/8" x 3/8"	1.00"	1.00"	0.47"	0.13
10212 (10-212)	3/8" x 3/8" x 1/2"	1.12"	1.22"	0.69"	0.22
10213 (10-213)	1/2" x 1/2" x 1/4"	1.16"	1.00"	0.59"	0.20
10214 (10-214)	1/2" x 1/2" x 3/8"	1.16"	1.14"	0.59"	0.19
10215 (10-215)	1/2" x 1/2" x 1/2"	1.22"	1.22"	0.69"	0.24
10216 (10-216)	1/2" x 1/2" x 3/4"	1.38"	1.41"	0.88"	0.22
10217 (10-217)	5/8" x 5/8" x 3/8"	1.38"	1.25"	0.69"	0.24
10218 (10-218)	5/8" x 5/8" x 1/2"	1.41"	1.31"	0.69"	0.29
10219 (10-219)	5/8" x 5/8" x 3/4"	1.41"	1.41"	0.88"	0.36
10220 (10-220)	3/4" x 3/4" x 1/2"	1.63"	1.59"	0.88"	0.49
10221 (10-221)	3/4" x 3/4" x 1/2"	-	-	-	0.48
