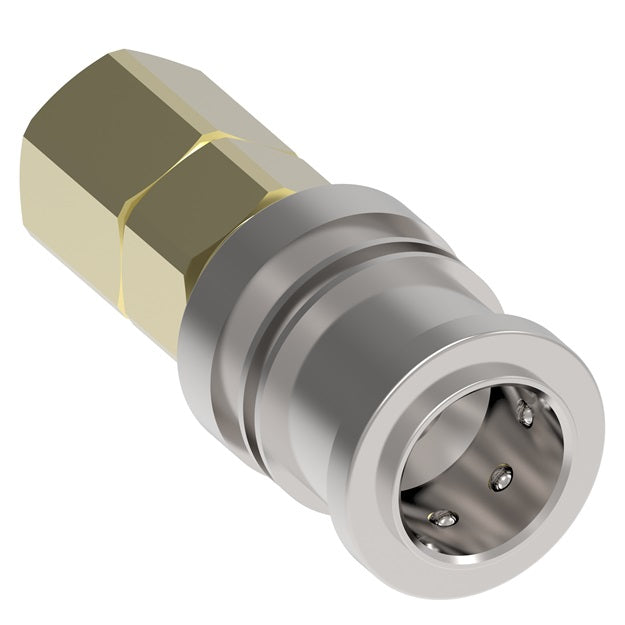

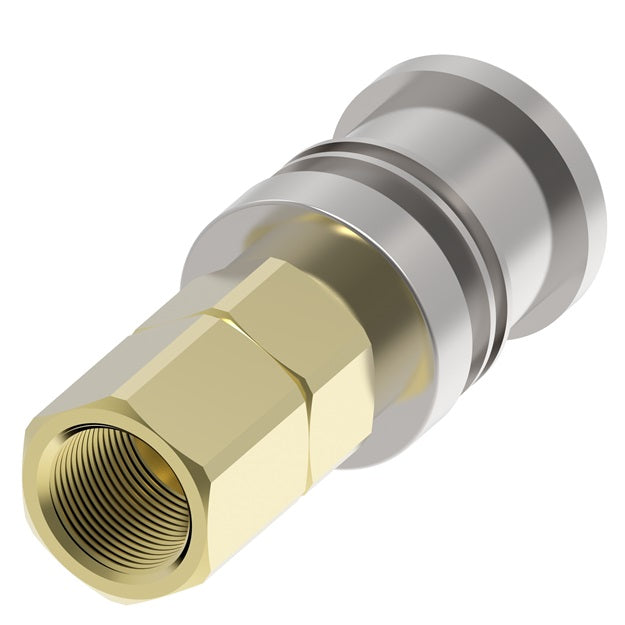

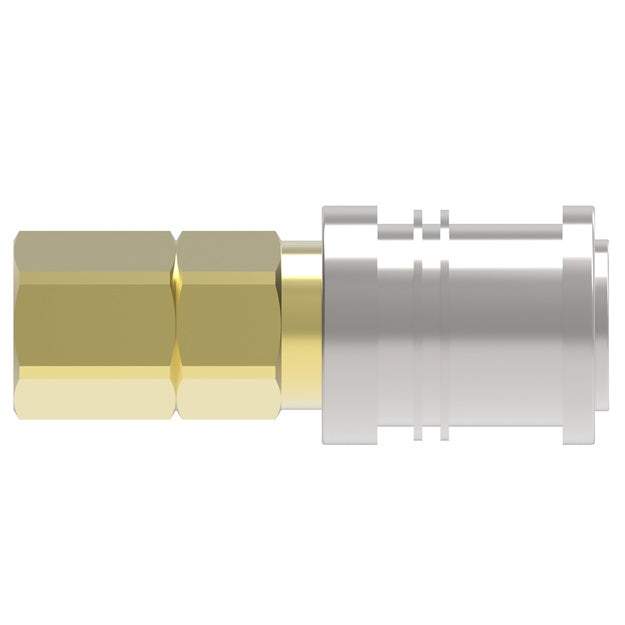

102E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 100 Series | 1/4" Female NPTF x 1/4" Body Size | Socket | Buna-N Seal | Brass

102E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 100 Series | 1/4" Female NPTF x 1/4" Body Size | Socket | Buna-N Seal | Brass

$22.38 - $22.38
$22.38
$22.38 - $22.38
$22.38

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 100 Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 100 Series quick disconnect couplings are designed to prevent the crossing of lines.

These couplings are used for compressed air and gases.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 102E Danfoss
Brand: Hansen
Series: 100 Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Non-interchangeable design prevents crossing of lines.
Applications & Markets:
  • General Pneumatics
  • Industrial Plants
Materials:
  • Standard body material: Brass
  • Standard seal material: Buna-N.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
100 1/4" 24 bar 350 psi 96 bar 2,800 psi 566 lpm 20 scfm
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
100 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
A B Hex
100E Socket/Female 1/4" 1/8" 1/8-27 Female NPTF 1 1.75"
(44.5mm)		 1.03"
(26.2mm)		 0.69"
(17.5mm)
102E Socket/Female 1/4" 1/4" 1/4-18 Female NPTF 1 1.97"
(50.0mm)		 1.03"
(26.2mm)		 0.69"
(17.5mm)
104 Socket/Female 1/4" 3/8" 3/8-18 Female NPTF 1 2.05"
(52.1mm)		 1.03"
(26.2mm)		 0.75"
(19.1mm)
100 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
C D Hex
1G2 Plug/Male 1/4" 1/4" 1/4-18 Female NPTF 2 1.43"
(36.3mm)		 0.79"
(20.1mm)		 0.69"
(17.5mm)
