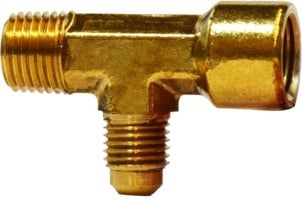

10382 (10-382) by Midland | SAE 45° Flare Fitting | Forged Adapter / Service | 1/8" Male NPTF x 1/8" Female NPTF x 1/4" Male SAE 45° Flare | Tee | Brass

10382 (10-382) by Midland | SAE 45° Flare Fitting | Forged Adapter / Service | 1/8" Male NPTF x 1/8" Female NPTF x 1/4" Male SAE 45° Flare | Tee | Brass

Save $0.75 Save $0.75
$6.77
$6.77 - $6.77
$6.77
$6.02
$6.02 - $6.02
$6.02

Midland Industries
Brass Fitting - SAE 45° Flare - Forged Adapter Tee / Service Tee - Brass

Inventory @ Manufacturers Warehouse: 47 Units
Specifications for Variant SKU: 10382 Midland
Shape (Orientation): Tee
Ends Configuration: 1/8in Male NPTF, 1/8in Female NPTF, 1/4in Male SAE 45 Flare, Some Ends Match
Material(s): Brass
Applicable Specs & Approvals: ASA, ASME, SAE, MS (Military Standards)
Applications: LP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems. Used With: Copper, Brass, Aluminum and Steel hydraulic tubing that can be flared.
SAE Rating: N/A Conformance: Meets specifications and standards of ASA, ASME, SAE and MS (Military standards).
Vibration: Good resistance - use long nut when greater vibration resistance is required. Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures
Tolerance: +/- .03 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical. Lead Free: Not Lead Free
Working Pressure Ranges:
  • Temperature and type of tubing used are important factors. However, the following table is a good guide for proper selection. Temperature 730F with copper tubing:
Assembly Instructions:
  • 1) Cut tubing to desired length. Make sure all burrs are removed and ends are cut square.
  • 2) Slide nut on tube. Threaded end "A" of nut must face out.
  • 3) Flare end of tube with a 450 flaring tool.
    • A) Measure flare diameter
    • B) Examine flare for excessive thin out.
  • 4) Lubricate threads and assemble to fitting body. Nut should be turned hand tight.
  • 5) Tighten assembly with wrench until a solid feeling is encountered. From that point, apply a one-sixth turn.
  • Note: Do not over-torque as it may damage the fitting or split the tubing at the flare.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4"
Thread Size B 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-16 3/4-16 7/8-14 1-1/16-14
Crossover Series:
53 503 T17
Part Number Male NPTF (1) Female NPTF (2) Male SAE 45° Flare (3) A B C Body Size Approx. Weight
(Lbs.)
10382
(10-382)		 1/8" 1/8" 1/4" 0.72" 0.53" 0.80" 0.47" 0.08
10383
(10-383)		 1/4" 1/4" 1/4" - - - - 0.11
