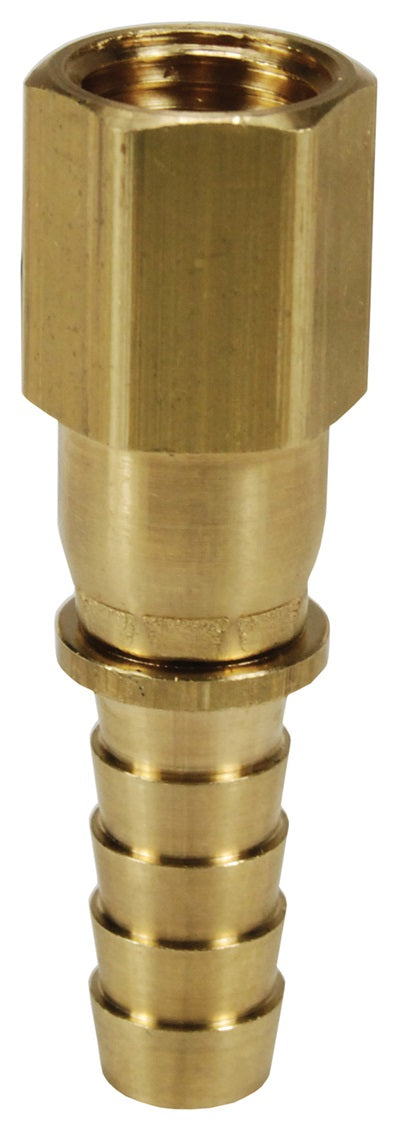

1050406C by Dixon Valve | Hose Barb Insert | 3/8" Female PTF-SAE Short Swivel x 1/4" Hose ID | Brass

1050406C by Dixon Valve | Hose Barb Insert | 3/8" Female PTF-SAE Short Swivel x 1/4" Hose ID | Brass

Save $1.82 Save $1.82
$16.37
$16.37 - $16.37
$16.37
$14.55
$14.55 - $14.55
$14.55

Dixon Valve
Hose Barb Insert | Female PTF-SAE Short Swivel x Hose Barb
Specifications for Variant SKU: 1050406C Dixon
Series: 105 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 3/8in Female PTF
Material(s): Brass
Applicable Specs & Approvals: Swivel
Construction:
  • Brass
  • Dryseal
Safety Notes:
  • All standard hose fittings are intended for use with hose clamps or crimped ferrules.
  • Swivel for assembly convenience only, not for live swivel applications. Operational PSI is 80
Previous Part Number Brass
Part Number		 Hose I.D. Female PTF-SAE Short
105-0404 1050404C 1/4" 1/4"
- 1050406C 1/4" 3/8"
- 1050504C 5/16" 1/4"
105-0604 1050604C 3/8" 1/4"
105-0606 1050606C 3/8" 3/8"
105-0806 1050806C 1/2" 3/8"
105-0808 1050808C 1/2" 1/2"
- 1051208C 3/4" 1/2"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
