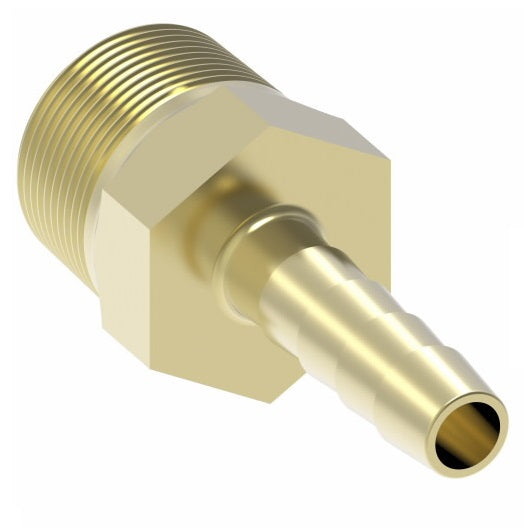

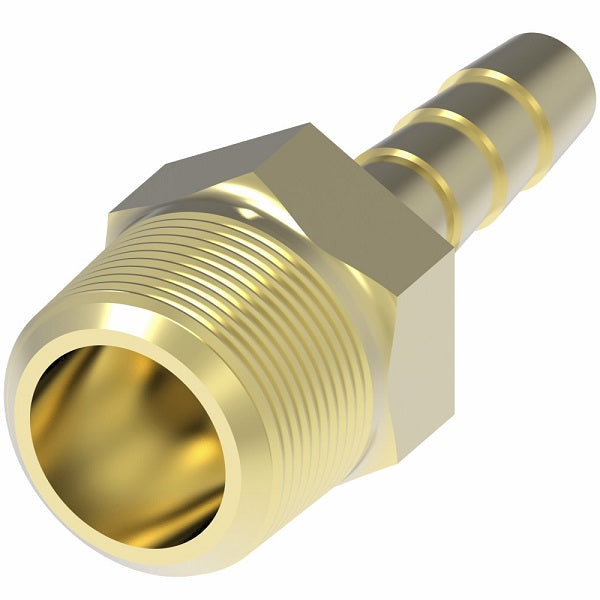

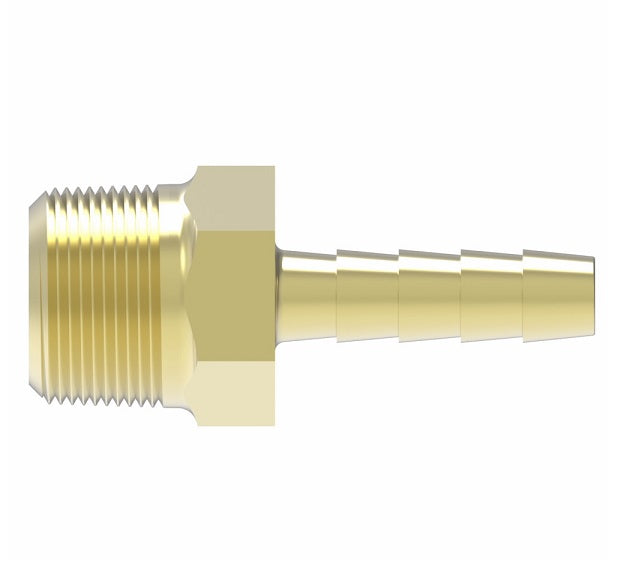

10504B-104 Weatherhead by Danfoss | Male Pipe (PTF Short) Field Attachable Fitting | 105 'B' Series Barb-Tite | -04 Male Pipe (PTF Short) x -04 Push-On Hose Barb | Brass
10504B-104 Weatherhead by Danfoss | Male Pipe (PTF Short) Field Attachable Fitting | 105 'B' Series Barb-Tite | -04 Male Pipe (PTF Short) x -04 Push-On Hose Barb | Brass
10504B-104 Weatherhead by Danfoss | Male Pipe (PTF Short) Field Attachable Fitting | 105 'B' Series Barb-Tite | -04 Male Pipe (PTF Short) x -04 Push-On Hose Barb | Brass
10504B-104 Weatherhead by Danfoss | Male Pipe (PTF Short) Field Attachable Fitting | 105 'B' Series Barb-Tite | -04 Male Pipe (PTF Short) x -04 Push-On Hose Barb | Brass

10504B-104 Weatherhead by Danfoss | Male Pipe (PTF Short) Field Attachable Fitting | 105 'B' Series Barb-Tite | -04 Male Pipe (PTF Short) x -04 Push-On Hose Barb | Brass

$3.38 - $3.38
$3.38
$3.38 - $3.38
$3.38

Weatherhead by Danfoss
Field Attachable Fitting - 105 'B' Series Barb-Tite - Male Pipe (PTF Short) - Straight

Ideal Fitting for Low pressure shop or service air lines.

Easy to assemble - just push the Fitting into the hose and clamp.
Specifications for Variant SKU: 10504B-104 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male PTF, 1/4in Push-On Hose Barb
Material(s): Brass
Compatible with the following Series: H0105 Series  |   H0106 Series
Notes:
  • Pressure: Determined by maximum working pressure for hose size.
  • CAUTION: Hose can be damaged if over-tightened.
  • Label Set: FS-500
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
  • CA360 Brass
Compatible Hose:
  • H0105 and H0106
Assembly instructions:
  • 1. Slide clamp over hose.
  • 2. Insert barbed end of Fitting into hose.
  • 3. Locate clamp in middle of insert and tighten. Use 6203/6204 Series clamps only.
Part Number
Brass		 Hose
I.D.		 Pipe
Size		 A Hex
F		 Number
of Barbs
10504B-104 1/4" 1/4" 1.61" 9/16" 4
10506B-108 3/8" 1/2" 1.95" 7/8" 4
10508B-108 1/2" 1/2" 1.94" 7/8" 4

Note: Drawings may differ from actual parts.
