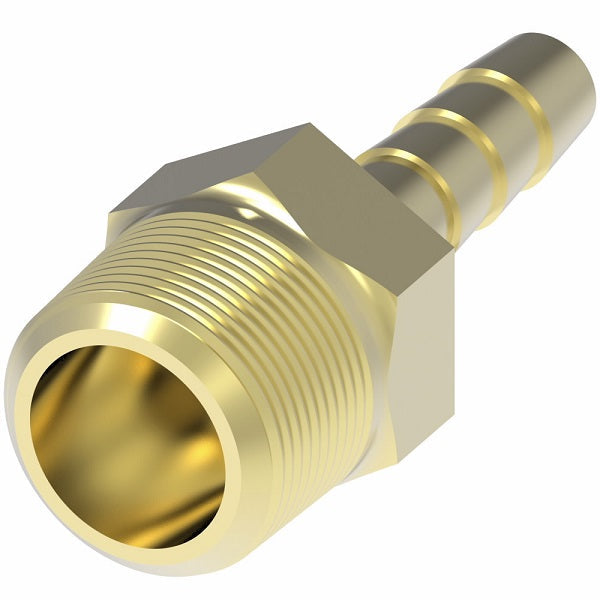

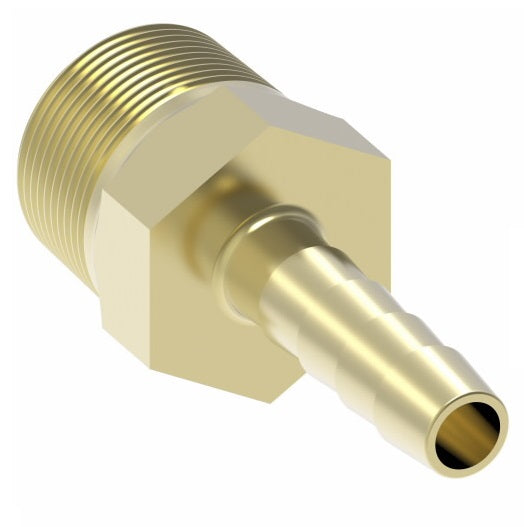

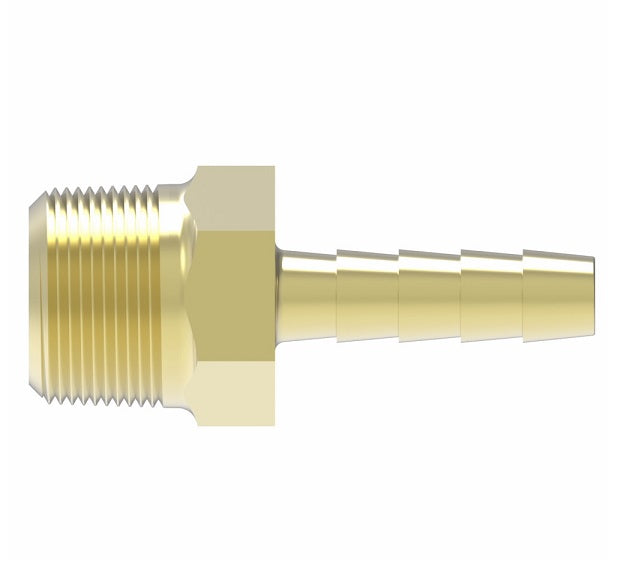

10508B-108 Weatherhead by Danfoss | Male Pipe (PTF Short) Field Attachable Fitting | 105 'B' Series Barb-Tite | -08 Male Pipe (PTF Short) x -08 Push-On Hose Barb | Brass

10508B-108 Weatherhead by Danfoss | Male Pipe (PTF Short) Field Attachable Fitting | 105 'B' Series Barb-Tite | -08 Male Pipe (PTF Short) x -08 Push-On Hose Barb | Brass

Name: 10508B-108 Weatherhead by Danfoss | Male Pipe (PTF Short) Field Attachable Fitting | 105 'B' Series Barb-Tite | -08 Male Pipe (PTF Short) x -08 Push-On Hose Barb | Brass
Brand: Danfoss/Eaton
SKU: 10508B-108 Danfoss
Price: 6.44 USD
Availability: InStock

$6.44 - $6.44

$6.44

$6.44 - $6.44

$6.44

Weatherhead by Danfoss
Field Attachable Fitting - 105 'B' Series Barb-Tite - Male Pipe (PTF Short) - Straight

Ideal Fitting for Low pressure shop or service air lines.

Easy to assemble - just push the Fitting into the hose and clamp.

Quantity

Specifications for Variant SKU: 10508B-108 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male PTF, 1/2in Push-On Hose Barb
Material(s):	Brass
Compatible with the following Series:	H0105 Series \| H0106 Series

Notes:
Pressure: Determined by maximum working pressure for hose size. CAUTION: Hose can be damaged if over-tightened. Label Set: FS-500 To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
CA360 Brass
Compatible Hose:
H0105 and H0106
Assembly instructions:
1. Slide clamp over hose. 2. Insert barbed end of Fitting into hose. 3. Locate clamp in middle of insert and tighten. Use 6203/6204 Series clamps only.


Part Number Brass	Hose I.D.	Pipe Size	A	Hex F	Number of Barbs
10504B-104	1/4"	1/4"	1.61"	9/16"	4
10506B-108	3/8"	1/2"	1.95"	7/8"	4
10508B-108	1/2"	1/2"	1.94"	7/8"	4

Note: Drawings may differ from actual parts.
