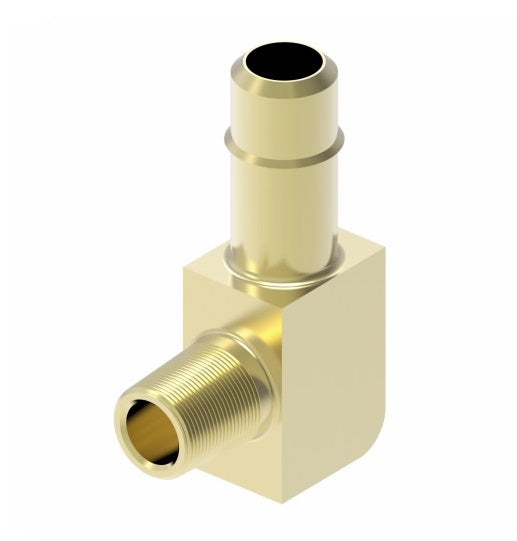

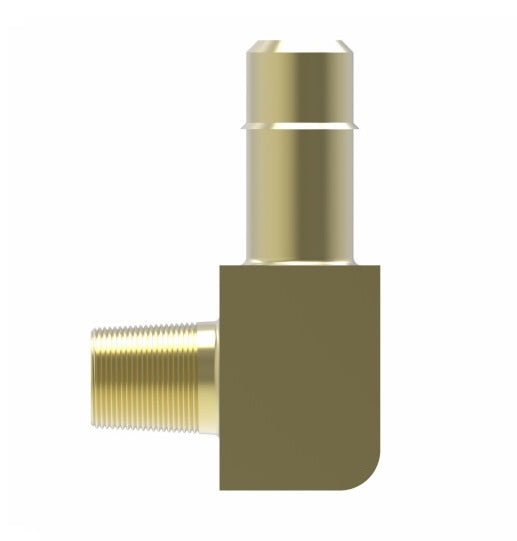

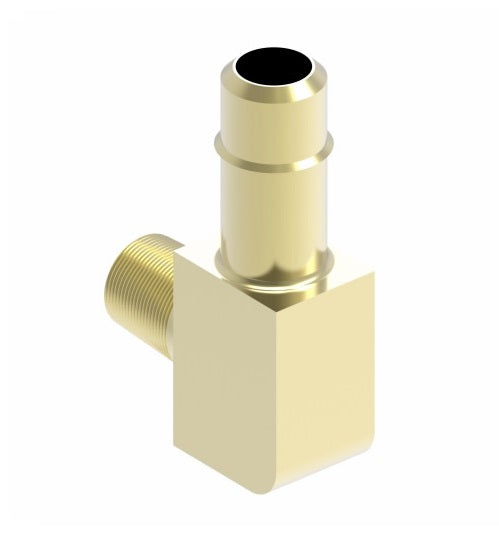

1069X4Z by Danfoss | Mini-Barb Fitting | Male Connector 90° Elbow (with Sealant) | for 1/4" Tubing OD | 1/8" Male Pipe | Brass
1069X4Z by Danfoss | Mini-Barb Fitting | Male Connector 90° Elbow (with Sealant) | for 1/4" Tubing OD | 1/8" Male Pipe | Brass
1069X4Z by Danfoss | Mini-Barb Fitting | Male Connector 90° Elbow (with Sealant) | for 1/4" Tubing OD | 1/8" Male Pipe | Brass
1069X4Z by Danfoss | Mini-Barb Fitting | Male Connector 90° Elbow (with Sealant) | for 1/4" Tubing OD | 1/8" Male Pipe | Brass

1069X4Z by Danfoss | Mini-Barb Fitting | Male Connector 90° Elbow (with Sealant) | for 1/4" Tubing OD | 1/8" Male Pipe | Brass

$3.50 - $3.50
$3.50
$3.50 - $3.50
$3.50

Aeroquip® by Danfoss
Mini-Barb Fitting - Male Connector
Specifications for Variant SKU: 1069X4Z Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Hose Barb, 1/8in Male NPT
Material(s): Brass
Compatible with the following Series: PT240 Series
Applications:
  • Temperature control circuits, test apparatus, lubricant, coolant lines, pneumatic circuits, vacuum and fluid systems.
Advantages:
  • Quick connecting - no tube preparation.
  • Hand assembly.
  • Low cost one-piece push-on design.
  • Barbed lip provides safe, positive connection.
  • Compact size permits use in extremely tight areas.
  • Excellent vibration resistance.
Used With:
  • PT240 Polyethylene tubing.
Material:
  • CA360 Brass
Pressure:
  • Will withstand burst pressures of plastic tubing.
Temperature Range:
  • Depends on tubing used.
Conformance:
  • An exclusive item with Danfoss. User approvals only.
Tubing OD D E J
5/32" 0.062" 0.113" 0.380"
*3/16" 0.078" 0.125" 0.500"
1/4" 0.127" 0.189" 0.500"
3/8" 0.196" 0.270" 0.500"
1/2" 0.312" 0.395" 0.630"

*No barb on 3/16" size.
Brass
Part Number		 Brass
with Sealant
Part Number		 Tubing O.D. Male Pipe
Thread		 D1 M N
1069X4X1 - 1/4" 1/16" 0.156" 0.670" 0.550"
1069X4 1069X4Z 1/4" 1/8" 0.250" 0.720" 0.630"
1069X4X4 - 1/4" 1/4"* 0.312" 0.780" 0.650"
1069X6X2 1069X6X2Z 3/8" 1/8" 0.250" 0.740" 0.590"
1069X6 - 3/8" 1/4"* 0.312" 0.780" 0.620"
1069X8 - 1/2" 3/8"* 0.406" 0.980" 0.810"

* PTF Short Thread
