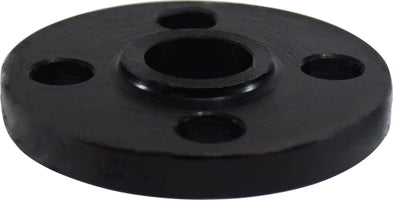

Slip-On 1/16" Raised Face Flange - Female Pipe - Carbon Steel
Specifications for Variant SKU: 107034 Midland
Material(s): Carbon Steel
Applicable Specs & Approvals: ASTMA105, ASME SA105, ANSI B16.5
Features:
  • Class 150
  • A105 Forged Steel
Specifications:
  • ASTMA105
  • ASME SA105
  • ANSI B16.5
Dimensions
Nominal Pipe Size Outside
Diameter
D		 O.D of Raised
Face
G		 Diameter at
Base of Hub
X		 Thickness
T		 Welding Neck
Socket Welding
B1		 Welding
Neck
T1		 Slip-on Threaded
Socket Welding
T2
1/2" 3.504" 1.382" 1.189" 0.441" 0.618" 1.882" 0.618"
3/4" 3.898" 1.689" 1.500" 0.500" 0.819" 2.059" 0.618"
1" 4.252" 2.000" 1.941" 0.559" 1.051" 2.189" 0.689"
1-1/4" 4.606" 2.500" 2.311" 0.618" 1.382" 2.252" 0.811"
1-1/2" 5.000" 2.882" 2.559" 0.689" 1.610" 2.441" 0.882"
2" 5.984" 3.618" 3.059" 0.752" 2.071" 2.500" 1.000"
2-1/2" 7.008" 4.118" 3.559" 0.882" 2.469" 2.752" 1.118"
3" 7.520" 5.000" 4.252" 0.941" 3.071" 2.752" 1.189"
4" 9.016" 6.189" 5.311" 0.941" 4.031" 3.000" 1.311"
6" 10.984" 8.500" 7.559" 1.000" 6.071" 3.500" 1.559"
8" 13.504" 10.618" 9.689" 1.118" 7.980" 4.000" 1.752"
10" 15.984" 12.752" 12.000" 1.189" 10.020" 4.000" 1.941"
12" 19.016" 15.000" 14.382" 1.252" 12.000" 4.500" 2.189"
Part Number Size Depth of
Socket
(in.)		 Bolt Circle
Diameter		 Number
of Holes		 Diameter
of Holes		 Diameter
of Bolts
(in.)		 Machine
Bolt Length
(Raised Face)		 Stud Bolt
Length
(Raised Face)		 Stud Bolt
Length
(Ring Joint)		 Welding
Neck
(lbs.)		 Slip-on and
Threaded
(lbs.)		 Blind
(lbs.)
107020
(107-020)		 1/2" 0.382" 2.382" 4 0.618" 1/2" 2.00" 2.252" - 1.146 lbs 1.036 lbs 1.036 lbs
107021
(107-021)		 3/4" 0.441" 2.752" 4 0.618" 1/2" 2.00" 2.50" - 2.028 lbs 1.653 lbs 1.389 lbs
107022
(107-022)		 1" 0.500" 3.118" 4 0.618" 1/2" 2.252" 2.50" 3.00" 2.425 lbs 1.893 lbs 2.094 lbs
107023
(107-023)		 1-1/4" 0.559" 3.50" 4 0.618" 1/2" 2.252" 2.752" 3.252" 3.086 lbs 3.086 lbs 3.086 lbs
107024
(107-024)		 1-1/2" 0.618" 3.882" 4 0.618" 1/2" 2.50" 2.752" 3.252 3.99 lbs 3.109 lbs 3.571 lbs
107025
(107-025)		 2" 0.689" 4.752" 4 0.752" 5/8" 2.752" 3.252" 3.752" 6.173 lbs 4.982 lbs 5.82 lbs
107026
(107-026)		 2-1/2" 0.752" 5.5" 4 0.752" 5/8" 3.00" 3.50" 4.00 9.436 lbs 7.562 lbs 8.951 lbs
107027
(107-027)		 3" 0.811" 6.0" 4 0.752" 5/8" 3.00" 3.50" 4.00 11.42 lbs 8.818 lbs 11.023 lbs
107029
(107-029)		 4" 0.941" 7.50" 8 0.752" 5/8" 3.00" 3.50" 4.00 16.138 lbs 12.677 lbs 16.535 lbs
107031
(107-031)		 6" 1.059" 9.5" 8 0.882" 3/4" 3.252" 4.00" 4.50" 24.824 lbs 17.196 lbs 26.455 lbs
107032
(107-032)		 8" 1.252" 11.752" 8 0.882" 3/4" 3.50" 4.252" 4.752" 39.683 lbs 28.66 lbs 44.092 lbs
107033
(107-033)		 10" 1.311" 14.252" 12 1.00" 7/8" 4.00" 4.50" 5.00" 55.116 lbs 37.699 lbs 66.139 lbs
107034
(107-034)		 12" 1.559" 17" 12 1.00" 7/8" 4.00" 4.752" 5.252" 85.936 lbs 61.024 lbs 97.003 lbs
