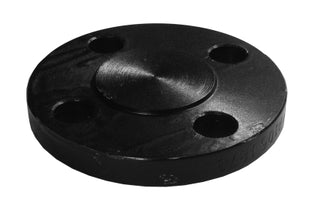

107052 (107-052) by Midland | Blind 1/16" Raised Face Flange | 8" Size | Carbon Steel

107052 (107-052) by Midland | Blind 1/16" Raised Face Flange | 8" Size | Carbon Steel

Save $74.00 Save $74.00
$185.00
$185.00 - $185.00
$185.00
$111.00
$111.00 - $111.00
$111.00

Midland Industries
Blind 1/16" Raised Face Flange - Carbon Steel
Specifications for Variant SKU: 107052 Midland
Material(s): Carbon Steel
Applicable Specs & Approvals: ASTMA105, ASME SA105, ANSI B16.5
Features:
  • Class 150
  • A105 Forged Steel
Specifications:
  • ASTMA105
  • ASME SA105
  • ANSI B16.5
Dimensions
Nominal Pipe Size Outside
Diameter
D		 O.D of Raised
Face
G		 Diameter at
Base of Hub
X		 Thickness
T		 Welding Neck
Socket Welding
B1		 Welding
Neck
T1		 Slip-on Threaded
Socket Welding
T2
1/2" 3.504" 1.382" 1.189" 0.441" 0.618" 1.882" 0.618"
3/4" 3.898" 1.689" 1.500" 0.500" 0.819" 2.059" 0.618"
1" 4.252" 2.000" 1.941" 0.559" 1.051" 2.189" 0.689"
1-1/4" 4.606" 2.500" 2.311" 0.618" 1.382" 2.252" 0.811"
1-1/2" 5.000" 2.882" 2.559" 0.689" 1.610" 2.441" 0.882"
2" 5.984" 3.618" 3.059" 0.752" 2.071" 2.500" 1.000"
2-1/2" 7.008" 4.118" 3.559" 0.882" 2.469" 2.752" 1.118"
3" 7.520" 5.000" 4.252" 0.941" 3.071" 2.752" 1.189"
4" 9.016" 6.189" 5.311" 0.941" 4.031" 3.000" 1.311"
6" 10.984" 8.500" 7.559" 1.000" 6.071" 3.500" 1.559"
8" 13.504" 10.618" 9.689" 1.118" 7.980" 4.000" 1.752"
10" 15.984" 12.752" 12.000" 1.189" 10.020" 4.000" 1.941"
12" 19.016" 15.000" 14.382" 1.252" 12.000" 4.500" 2.189"
Part Number Size Depth of
Socket
(in.)		 Bolt Circle
Diameter		 Number
of Holes		 Diameter
of Holes		 Diameter
of Bolts
(in.)		 Machine
Bolt Length
(Raised Face)		 Stud Bolt
Length
(Raised Face)		 Stud Bolt
Length
(Ring Joint)		 Welding
Neck
(lbs.)		 Slip-on and
Threaded
(lbs.)		 Blind
(lbs.)
107040
(107-040)		 1/2" 0.382" 2.382" 4 0.618" 1/2" 2.00" 2.252" - 1.146 lbs 1.036 lbs 1.036 lbs
107041
(107-041)		 3/4" 0.441" 2.752" 4 0.618" 1/2" 2.00" 2.50" - 2.028 lbs 1.653 lbs 1.389 lbs
107042
(107-042)		 1" 0.500" 3.118" 4 0.618" 1/2" 2.252" 2.50" 3.00" 2.425 lbs 1.893 lbs 2.094 lbs
107043
(107-043)		 1-1/4" 0.559" 3.50" 4 0.618" 1/2" 2.252" 2.752" 3.252" 3.086 lbs 3.086 lbs 3.086 lbs
107044
(107-044)		 1-1/2" 0.618" 3.882" 4 0.618" 1/2" 2.50" 2.752" 3.252 3.99 lbs 3.109 lbs 3.571 lbs
107045
(107-045)		 2" 0.689" 4.752" 4 0.752" 5/8" 2.752" 3.252" 3.752" 6.173 lbs 4.982 lbs 5.82 lbs
107047
(107-047)		 3" 0.811" 6.0" 4 0.752" 5/8" 3.00" 3.50" 4.00 11.42 lbs 8.818 lbs 11.023 lbs
107049
(107-049)		 4" 0.941" 7.50" 8 0.752" 5/8" 3.00" 3.50" 4.00 16.138 lbs 12.677 lbs 16.535 lbs
107051
(107-051)		 6" 1.059" 9.5" 8 0.882" 3/4" 3.252" 4.00" 4.50" 24.824 lbs 17.196 lbs 26.455 lbs
107052
(107-052)		 8" 1.252" 11.752" 8 0.882" 3/4" 3.50" 4.252" 4.752" 39.683 lbs 28.66 lbs 44.092 lbs
107053
(107-053)		 10" 1.311" 14.252" 12 1.00" 7/8" 4.00" 4.50" 5.00" 55.116 lbs 37.699 lbs 66.139 lbs
107054
(107-054)		 12" 1.559" 17" 12 1.00" 7/8" 4.00" 4.752" 5.252" 85.936 lbs 61.024 lbs 97.003 lbs
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.

Shop Parts by Midland Industries
