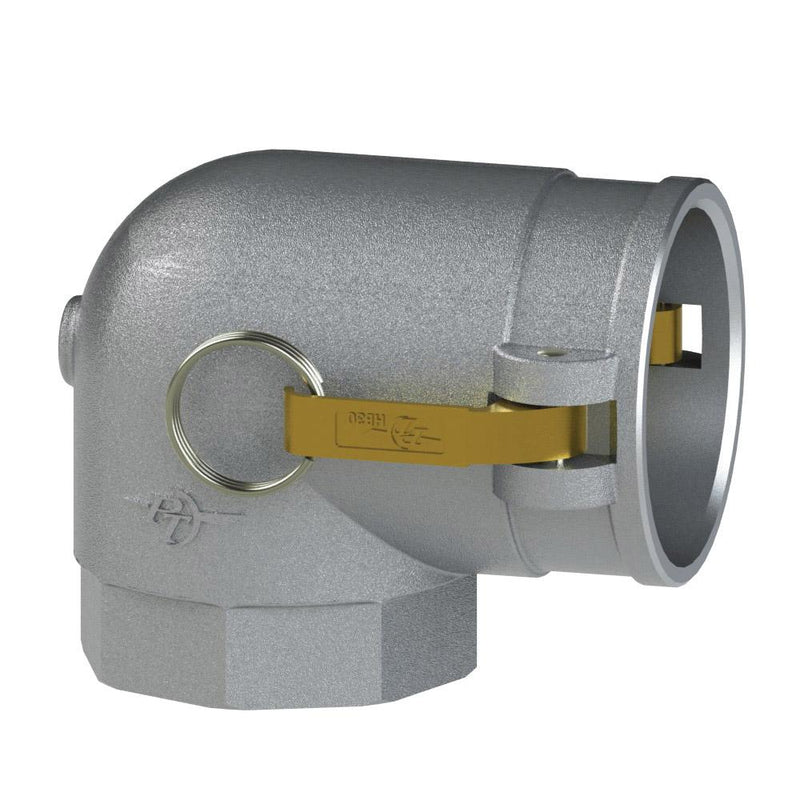

1070840 (40H) by PT-Coupling | Cam & Groove Adapter | Type H | 90° Elbow | 4" Female NPT x 4" Coupler | Aluminum/HB | Buna-N Seal

Save $78.66

$211.93

$211.93 - $211.93

$211.93

$133.27

$133.27 - $133.27

$133.27

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1070840 PT-Coupling
Shape (Orientation):	90 Degree Elbow
Cam Type:	Type D
Ends Configuration:	4in Female NPT, 4in Female Cam & Groove
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
HB cam arms are made of Brass. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Orientation	Female NPT Thread	Coupler Size	Max. Allowable Working Press. (PSI)*
15H	1070815	90°	1-1/2"	1-1/2"	250 PSI
20H	1070820	90°	2"	2"	250 PSI
25H	1070825	90°	2-1/2"	2-1/2"	200 PSI
30H	1070830	90°	3"	3"	200 PSI
40H	1070840	90°	4"	4"	150 PSI
60H	1000860	90°	6"	6"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
