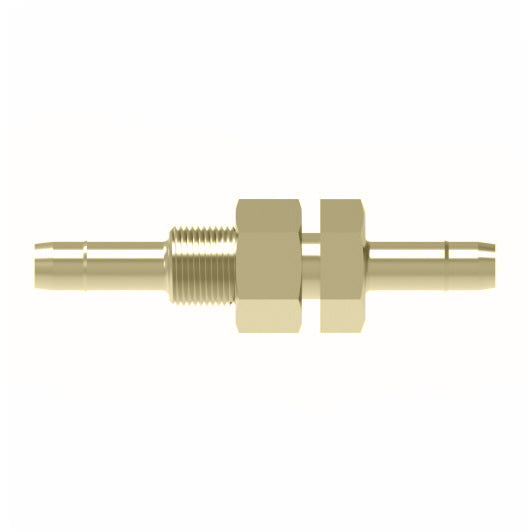

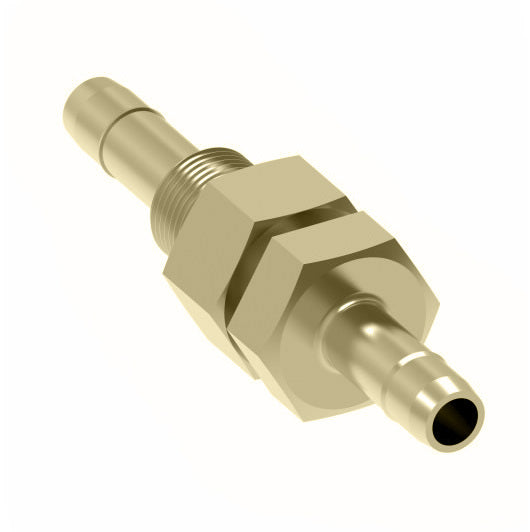

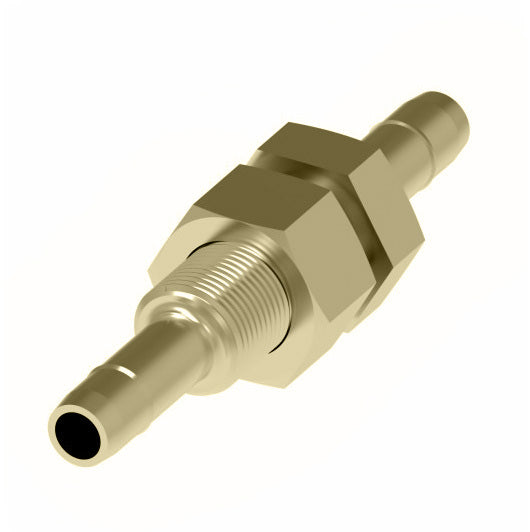

1074X6 by Danfoss | Mini-Barb Fitting | Bulkhead Union | for 3/8" Tubing OD x 3/8" Tubing OD | Brass
1074X6 by Danfoss | Mini-Barb Fitting | Bulkhead Union | for 3/8" Tubing OD x 3/8" Tubing OD | Brass
1074X6 by Danfoss | Mini-Barb Fitting | Bulkhead Union | for 3/8" Tubing OD x 3/8" Tubing OD | Brass
1074X6 by Danfoss | Mini-Barb Fitting | Bulkhead Union | for 3/8" Tubing OD x 3/8" Tubing OD | Brass

1074X6 by Danfoss | Mini-Barb Fitting | Bulkhead Union | for 3/8" Tubing OD x 3/8" Tubing OD | Brass

$16.14 - $16.14
$16.14
$16.14 - $16.14
$16.14

Aeroquip® by Danfoss
Mini-Barb Fitting - Bulkhead Union
Specifications for Variant SKU: 1074X6 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 3/8in Hose Barb, Some Ends Match
Material(s): Brass
Compatible with the following Series: PT240 Series
Applications:
  • Temperature control circuits, test apparatus, lubricant, coolant lines, pneumatic circuits, vacuum and fluid systems.
Advantages:
  • Quick connecting - no tube preparation.
  • Hand assembly.
  • Low cost one-piece push-on design.
  • Barbed lip provides safe, positive connection.
  • Compact size permits use in extremely tight areas.
  • Excellent vibration resistance.
Used With:
  • PT240 Polyethylene tubing.
Material:
  • CA360 Brass
Pressure:
  • Will withstand burst pressures of plastic tubing.
Temperature Range:
  • Depends on tubing used.
Conformance:
  • An exclusive item with Danfoss. User approvals only.
Tubing OD D E J
5/32" 0.062" 0.113" 0.380"
*3/16" 0.078" 0.125" 0.500"
1/4" 0.127" 0.189" 0.500"
3/8" 0.196" 0.270" 0.500"
1/2" 0.312" 0.395" 0.630"

*No barb on 3/16" size.
Brass
Part Number		 Tubing O.D. Thread
T		 Hex
C		 K L Max.
P
1074X4 1/4" 5/16-24 UNF 7/16" 1.06" 1.74" 0.31"
1074X6 3/8" 3/8-24 UNF 1/2" 1.06" 1.74" 0.31"
