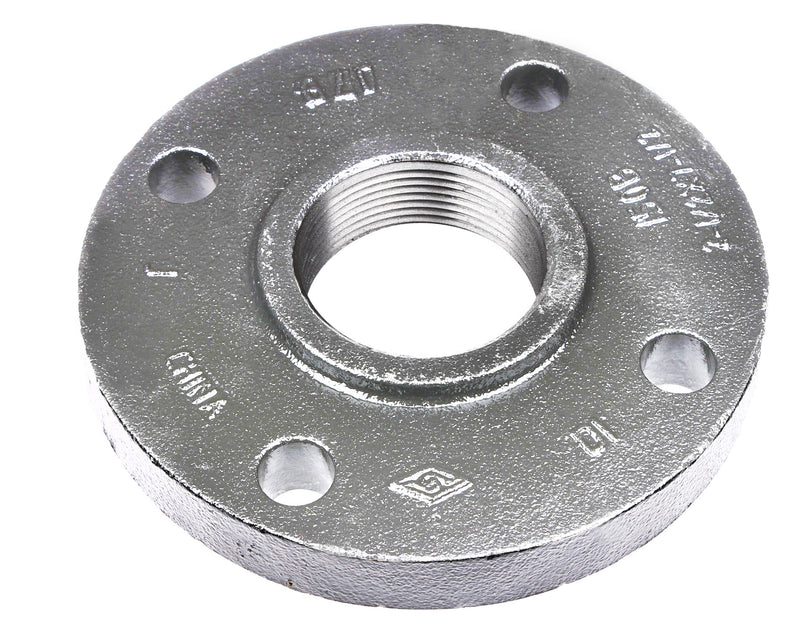

108025 Midland | Threaded Companion Flange | 2" | Class 150 Threaded | Galvanized Ductile Iron

108025 by Midland | Threaded Companion Flange | 2" Size | Class 150 Threaded | Galvanized Ductile Iron

Save $23.85 Save $23.85
$59.62
$59.62 - $59.62
$59.62
$35.77
$35.77 - $35.77
$35.77

Midland Industries
Threaded Companion Flange - Class 150 Threaded - Galvanized Ductile Iron

Applications: Waterworks, Pumps, Irrigations

Inventory @ Manufacturers Warehouse: 86 Units
Specifications for Variant SKU: 108025 Midland
Shape (Orientation): Straight
Ends Configuration: 2in 150# Flange, 2in Female NPT
Material(s): Ductile Iron
Features:
  • Dimensions, faced and drilled in accordance with ASME B16.42/AWWA C110
  • Companion flange threads conform to: ASME B1.20.1
  • Hot Dip Galvanized conforms to ASTM A153
Part Number Description
(Threaded)		 Size
(Inch)		 A
(Inch)		 B
(Inch)		 C
(Inch)		 D
(Inch)		 Bolt Hole
Size		 No. of
Holes		 Weight
(kg)
108025 2" - 150 2" 6" 4.75" 0.62" 1" φ0.75 4 2.1457
108026 2-1/2" - 150 2-1/2" 7" 5.5" 0.69" 1.12" φ0.75 4 3.4182
108027 3" - 150 3" 7.5" 6" 0.75" 1.19" φ0.75 4 3.9051
108028 4" - 150 4" 9" 7.5" 0.94" 1.31" φ0.75 8 5.5254
108029 6" - 150 6" 11" 9.5" 1" 1.56" φ0.875 8 7.5328
