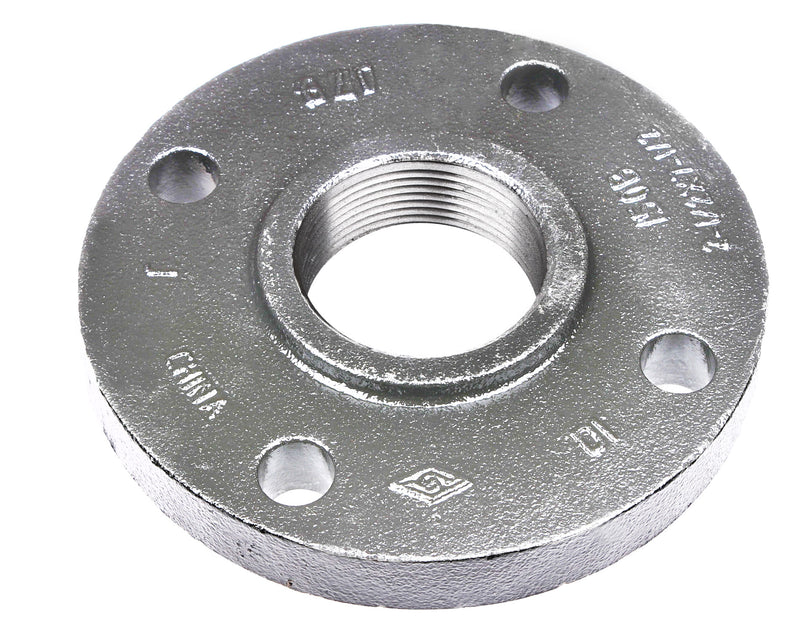

108026 Midland | Threaded Companion Flange | 2-1/2" | Class 150 Threaded | Galvanized Ductile Iron

108026 by Midland | Threaded Companion Flange | 2-1/2" Size | Class 150 Threaded | Galvanized Ductile Iron

Name: 108026 by Midland | Threaded Companion Flange | 2-1/2" Size | Class 150 Threaded | Galvanized Ductile Iron
Brand: Midland Industries
SKU: 108026 Midland
Price: 41.84 USD
Availability: InStock

Save $7.71

$49.55

$49.55 - $49.55

$49.55

$41.84

$41.84 - $41.84

$41.84

Midland Industries
Threaded Companion Flange - Class 150 Threaded - Galvanized Ductile Iron

Applications: Waterworks, Pumps, Irrigations

Inventory @ Manufacturers Warehouse: 77 Units

Quantity

Specifications for Variant SKU: 108026 Midland
Shape (Orientation):	Straight
Ends Configuration:	2-1/2in 150# Flange, 2-1/2in Female NPT
Material(s):	Ductile Iron

Features:
Dimensions, faced and drilled in accordance with ASME B16.42/AWWA C110 Companion flange threads conform to: ASME B1.20.1 Hot Dip Galvanized conforms to ASTM A153


Part Number	Description (Threaded)	Size (Inch)	A (Inch)	B (Inch)	C (Inch)	D (Inch)	Bolt Hole Size	No. of Holes	Weight (kg)
108025	2" - 150	2"	6"	4.75"	0.62"	1"	φ0.75	4	2.1457
108026	2-1/2" - 150	2-1/2"	7"	5.5"	0.69"	1.12"	φ0.75	4	3.4182
108027	3" - 150	3"	7.5"	6"	0.75"	1.19"	φ0.75	4	3.9051
108028	4" - 150	4"	9"	7.5"	0.94"	1.31"	φ0.75	8	5.5254
108029	6" - 150	6"	11"	9.5"	1"	1.56"	φ0.875	8	7.5328
