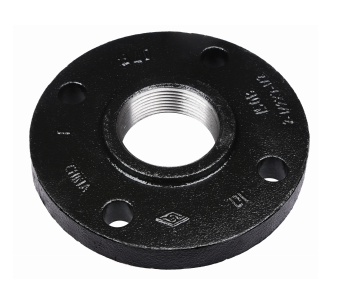

108072 Midland Threaded Companion Flange - 8" - Class 150 Threaded - Black Ductile Iron

108072 by Midland | Threaded Companion Flange | 8" Size | Class 150 Threaded | Black Ductile Iron

Save $30.40 Save $30.40
$195.38
$195.38 - $195.38
$195.38
$164.98
$164.98 - $164.98
$164.98

Midland Industries
Threaded Companion Flange - Class 150 Threaded - Black Ductile Iron

Applications: Waterworks, Pumps, Irrigations

Inventory @ Manufacturers Warehouse: 26 Units
Specifications for Variant SKU: 108072 Midland
Shape (Orientation): Straight
Ends Configuration: 8in 150# Flange, 8in Female NPT
Material(s): Ductile Iron
Features:
  • Dimensions, faced and drilled in accordance with ASME B16.42/AWWA C110
  • Companion flange threads conform to: ASME B1.20.1
  • Black Electrophoretic Coating
Part Number Description
(Threaded)		 Size
(Inch)		 A
(Inch)		 B
(Inch)		 C
(Inch)		 D
(Inch)		 Bolt Hole
Size		 No. of
Holes		 Weight
(kg)
108062 1" - 150 1" 4.25" 3.12" 0.44" 0.75" φ0.625 4 0.8347
108063 1-1/4" - 150 1-1/4" 4.62" 3.5" 0.5" 0.81" φ0.625 4 1.0797
108064 1-1/2" - 150 1-1/2" 5" 3.88" 0.56" 0.88" φ0.625 4 1.3217
108065 2" - 150 2" 6" 4.75" 0.62" 1" φ0.75 4 2.1457
108066 2-1/2" - 150 2-1/2" 7" 5.5" 0.69" 1.12" φ0.75 4 3.4182
108067 3" - 150 3" 7.5" 6" 0.75" 1.19" φ0.75 4 3.9051
108069 4" - 150 4" 9" 7.5" 0.94" 1.31" φ0.75 8 5.5254
108071 6" - 150 6" 11" 9.5" 1" 1.56" φ0.875 8 7.5328
108072 8" - 150 8" 13.5" 11.75" 1.12" 1.75" φ0.875 8 13.0201
108073 10" - 150 10" 16" 14.25" 1.19" 1.94" φ1 12 22.854
108074 12" - 150 12" 19" 17" 1.25" 2.19" φ1 12 26.5451
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
