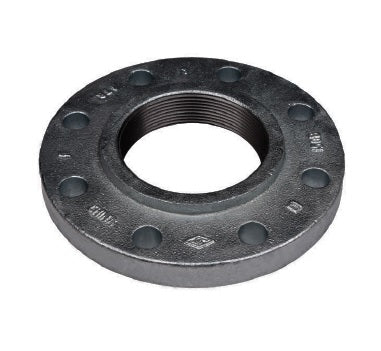

108095 Midland | Reducing Threaded Companion Flange | 6" x 3" | Class 125 Pattern | Black Ductile Iron

108095 by Midland | Reducing Threaded Companion Flange | 6" x 3" | Class 125 Pattern | Black Ductile Iron

Save $18.49 Save $18.49
$166.41
$166.41 - $166.41
$166.41
$147.92
$147.92 - $147.92
$147.92

Midland Industries
Reducing Threaded Companion Flange - Class 125 Pattern - Black Ductile Iron

Applications: Waterworks, Pumps, Irrigations

150 PSI

Inventory @ Manufacturers Warehouse: 13 Units
Specifications for Variant SKU: 108095 Midland
Shape (Orientation): Straight
Ends Configuration: 6in 125# Flange, 3in Female NPT
Material(s): Ductile Iron
Features:
  • Dimensions, faced and drilled in accordance with ASME B16.42/AWWA C110
  • Companion flange threads conform to: ASME B1.20.1
  • Black Electrophoretic Coating
Part Number Description Size
(Inch)		 A
(Inch)		 B
(Inch)		 C
(Inch)		 D
(Inch)		 Bolt
Hole Size		 No. of
Holes		 Weight
(kg)
108075 2-1/2X7 1/2
(Pipe Size 2-1/2 x 3)		 3" x 2" 7.50" 6.00" 0.75" 1.19" φ0.75 4 4.3827
108076 1-1/2X9
(Pipe Size 1-1/2 x 4)		 3" x 2-1/2" 7.50" 6.00" 0.75" 1.19" φ0.75 4 4.2013
108077 2 X9
(Pipe Size 2 x 4)		 4" x 1-1/2" 9.00" 7.50" 0.94" 1.31" φ0.75 8 6.8352
108088 2-1/2X9
(Pipe Size 2-1/2 x 4)		 4" x 2" 9.00" 7.50" 0.94" 1.31" φ0.75 8 6.4168
108089 3X9
(Pipe Size 3 x 4)		 4" x 2-1/2" 9.00" 7.50" 0.94" 1.31" φ0.75 8 6.3343
108090 2X10
(Pipe Size 2 x 5)		 4" x 3" 9.00" 7.50" 0.94" 1.31" φ0.75 8 6.081
108091 1-1/2X11
(Pipe Size 1-1/2 x 6)		 5" x 4" 10.00" 8.50" 0.94" 1.44" φ0.875 8 6.8761
108094 2-1/2X11
(Pipe Size 2-1/2 x 6)		 6" x 2" 11.00" 9.50" 1.00" 1.56" φ0.875 8 10.6349
108095 4X11
(Pipe Size 4 x 6)		 6" x 3" 11.00" 9.50" 1.00" 1.56" φ0.875 8 10.1831
108092 5X11
(Pipe Size 5 x 6)		 6" x 4" 11.00" 9.50" 1.00" 1.56" φ0.875 8 9.4563
108096 5X13-1/2
(Pipe Size 5 x 8)		 8" x 4" 13.50" 11.75" 1.12" 1.75" φ0.875 8 17.1296
108097 2X16 R
(Pipe Size 2 x 10)		 8" x 6" 13.50" 11.75" 1.12" 1.75" φ0.875 8 15.2184
108098 6X16 150PSI R
(Pipe Size 6 x 10)		 8" x 2" 16.00" 14.25" 1.19" 1.94" φ1 12 26.54
