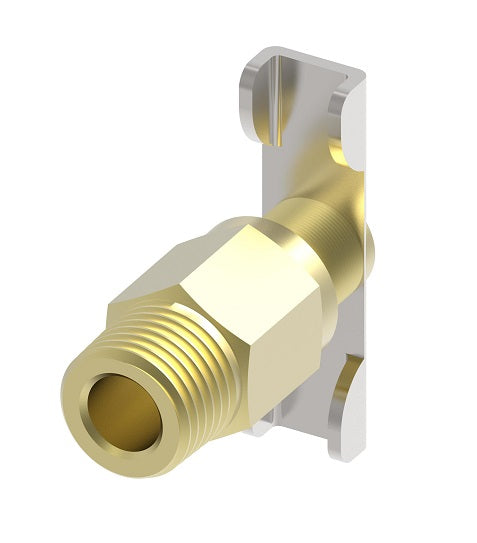

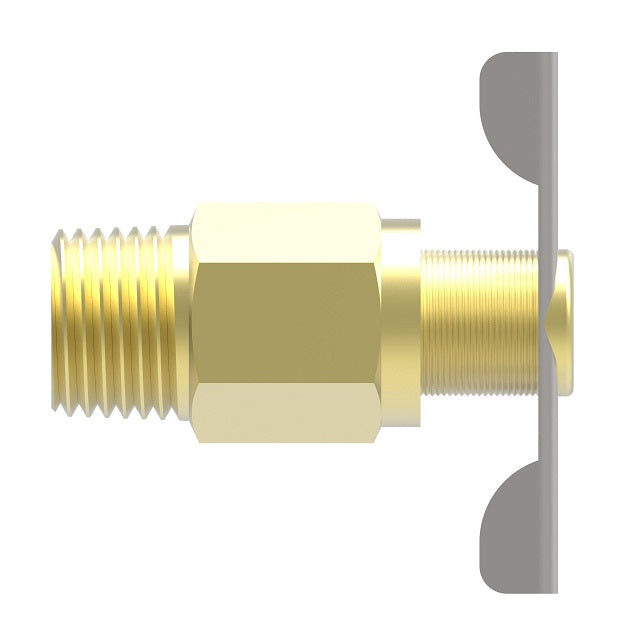

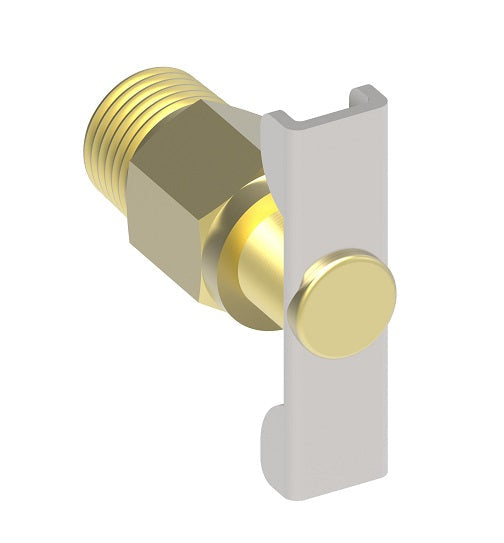

108Z by Danfoss | Drain Cock | External Seat (with Sealant) | 1/2" Male NPTF | Brass
108Z by Danfoss | Drain Cock | External Seat (with Sealant) | 1/2" Male NPTF | Brass
108Z by Danfoss | Drain Cock | External Seat (with Sealant) | 1/2" Male NPTF | Brass
108Z by Danfoss | Drain Cock | External Seat (with Sealant) | 1/2" Male NPTF | Brass

108Z by Danfoss | Drain Cock | External Seat (with Sealant) | 1/2" Male NPTF | Brass

$35.61 - $35.61
$35.61
$35.61 - $35.61
$35.61

Aeroquip® by Danfoss
Drain Cock - External Seat
Specifications for Variant SKU: 108Z Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPTF
Material(s): Brass
Applications:
  • Designed for automotive or industrial use.
Advantages:
  • The metal-to-metal seat requires only hand tightening to assure positive leak-proof performance.
Used With:
  • Copper, aluminum, steel, hose and plastic tubing where applicable.
Material:
  • Brass bodies/steel handles, except where noted
Pressure:
  • 150 psi maximum (does not include hose or plastic tubing.)
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C). (Refer to tubing temperature range.)
Conformance:
  • Not intended for natural gas, LPG, nuclear or aircraft applications, except as noted.
Brass
Part Number 		Brass
with Sealant
Part Number 		Male Pipe
Thread		 Hex
C		 L
135 - 1/8" 7/16" 0.90"
145 - 1/4" 9/16" 1.00"
270 270Z 3/8" 11/16" 1.25"
108 108Z 1/2" 7/8" 1.52"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
