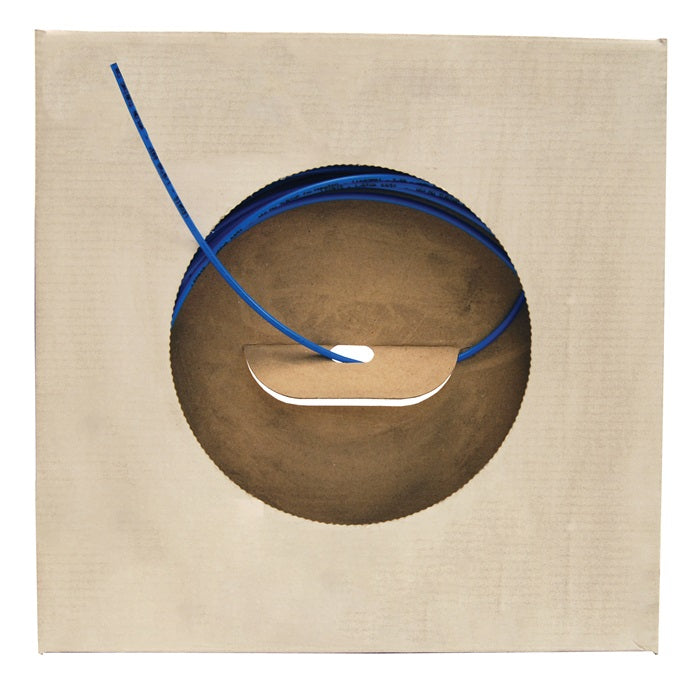

1091U5604 by Dixon Valve | Polyurethane - 95 Durometer Tubing | 1/4" OD | 0.160" ID | 0.045" Wall Thickness | 50ft Length | Blue

1091U5604 by Dixon Valve | Polyurethane - 95 Durometer Tubing | 1/4" OD | 0.160" ID | 0.045" Wall Thickness | Blue | 50ft Length

Save $0.10 Save $0.10
$42.44
$42.44 - $42.44
$42.44
$42.34
$42.34 - $42.34
$42.34

Dixon Valve
Polyurethane - 95 Durometer Tubing

Good for applications where space is tight.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1091U5604 Dixon
Brand: Legris
Series: Plastic Fittings and Tubing
Hose Color(s): Blue
Internal Diameter: 0.16in
Outer Diameter: 0.25in
Tubing Construction: Polyurethane
Features:
  • For applications where tubing will be exposed, black tubing is recommended.
  • High flexibility and a small bend radius.
Construction:
  • 95 Durometer.
Specifications:
  • Temperature range: -40°F to 165°F (-40°C to 74°C)
Clear
Polyurethane
Part Number		 Black
Polyurethane
Part Number		 Blue
Polyurethane
Part Number		 Size Wall Thickness Working Pressure
PSI @ 75°F (24°C)		 Length
O.D. I.D.
1091U53R00 1091U5301 1091U5304 1/8" 0.062" 0.031" 233 PSI 50ft
1091U04R00 1091U0401 1091U0404 5/32" 0.93" 0.031" 176 PSI 50ft
1091U56R00 1091U5601 1091U5604 1/4" 0.160" 0.045" 148 PSI 50ft
1091U08R00 1091U0801 1091U0804 5/16" 0.216" 0.049" 148 PSI 50ft
1091U60R00 1091U6001 1091U6004 3/8" 0.250" 0.066" 147 PSI 50ft
1091U62R00 1091U6201 1091U6204 1/2" 0.320" 0.090" 140 PSI 50ft

1094U53R00 1094U5301 1094U5304 1/8" 0.062" 0.031" 233 PSI 100ft
1094U04R00 1094U0401 1094U0404 5/32" 0.93" 0.031" 176 PSI 100ft
1094U56R00 1094U5601 1094U5604 1/4" 0.160" 0.045" 148 PSI 100ft
1094U08R00 1094U0801 1094U0804 5/16" 0.216" 0.049" 148 PSI 100ft
1094U60R00 1094U6001 1094U6004 3/8" 0.250" 0.066" 147 PSI 100ft
1094U62R00 1094U6201 1094U6204 1/2" 0.320" 0.090" 140 PSI 100ft
