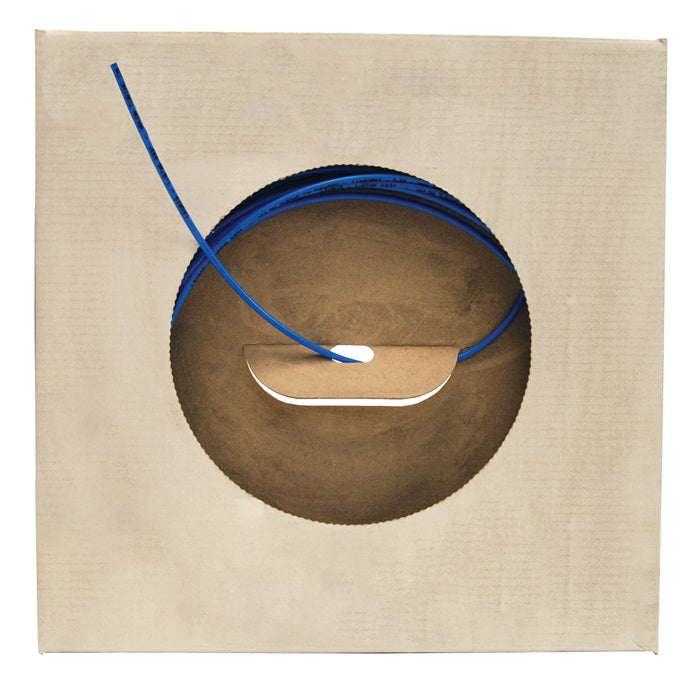

1091U5304 by Dixon Valve | Polyurethane - 95 Durometer Tubing | 1/8" OD | 0.062" ID | 0.031" Wall Thickness | 50ft Length | Blue

1091U5304 by Dixon Valve | Polyurethane - 95 Durometer Tubing | 1/8" OD | 0.062" ID | 0.031" Wall Thickness | Blue | 50ft Length

Save $3.94 Save $3.94
$35.49
$35.49 - $35.49
$35.49
$31.55
$31.55 - $31.55
$31.55

Dixon Valve
Polyurethane - 95 Durometer Tubing

Good for applications where space is tight.
Specifications for Variant SKU: 1091U5304 Dixon
Brand: Legris
Series: Plastic Fittings and Tubing
Hose Color(s): Blue
Internal Diameter: 0.062in
Outer Diameter: 0.125in
Tubing Construction: Polyurethane
Features:
  • For applications where tubing will be exposed, black tubing is recommended.
  • High flexibility and a small bend radius.
Construction:
  • 95 Durometer.
Specifications:
  • Temperature range: -40°F to 165°F (-40°C to 74°C)
Clear
Polyurethane
Part Number		 Black
Polyurethane
Part Number		 Blue
Polyurethane
Part Number		 Size Wall Thickness Working Pressure
PSI @ 75°F (24°C)		 Length
O.D. I.D.
1091U53R00 1091U5301 1091U5304 1/8" 0.062" 0.031" 233 PSI 50ft
1091U04R00 1091U0401 1091U0404 5/32" 0.93" 0.031" 176 PSI 50ft
1091U56R00 1091U5601 1091U5604 1/4" 0.160" 0.045" 148 PSI 50ft
1091U08R00 1091U0801 1091U0804 5/16" 0.216" 0.049" 148 PSI 50ft
1091U60R00 1091U6001 1091U6004 3/8" 0.250" 0.066" 147 PSI 50ft
1091U62R00 1091U6201 1091U6204 1/2" 0.320" 0.090" 140 PSI 50ft

1094U53R00 1094U5301 1094U5304 1/8" 0.062" 0.031" 233 PSI 100ft
1094U04R00 1094U0401 1094U0404 5/32" 0.93" 0.031" 176 PSI 100ft
1094U56R00 1094U5601 1094U5604 1/4" 0.160" 0.045" 148 PSI 100ft
1094U08R00 1094U0801 1094U0804 5/16" 0.216" 0.049" 148 PSI 100ft
1094U60R00 1094U6001 1094U6004 3/8" 0.250" 0.066" 147 PSI 100ft
1094U62R00 1094U6201 1094U6204 1/2" 0.320" 0.090" 140 PSI 100ft
