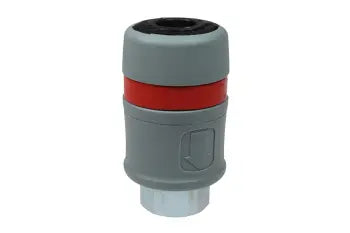

110C by Coilhose | Non-Marring Composite Coupler | Megaflow™ Coupler | 1/4" Female NPT Thread | Composite

110C by Coilhose | Non-Marring Composite Coupler | Megaflow™ Coupler | 1/4" Female NPT Thread | Composite

Save $22.07 Save $22.07
$55.17
$55.17 - $55.17
$55.17
$33.10
$33.10 - $33.10
$33.10
Coilhose Pneumatics - Couplers & Connectors - Non-Marring Composite Couplers - Automatic - Industrial, Safety, and Megaflow™
Specifications for Variant SKU: 110C Coilhose
Brand: Megaflow
Material(s): Composite
Overview:
  • These Non-Marring Couplers are manufactured out of a heavy-duty, high-impact fiberglass composite, which protects finished surfaces from scratching and marring that can occur with brass or steel couplers. These automatic couplers are available in three varieties: Industrial, Safety and Megaflow™.
  • Industrial Composite Couplers can be used with any standard Industrial Interchange connector. (Gray body with blue ring)
  • Safety Composite Couplers can be used with any standard Industrial Interchange connector, but offer additional protection against "hose whip" upon disconnection by safely bleeding off air line pressure through a two-step release mechanism. (Black body with yellow ring)
  • Megaflow™ Composite Couplers can be used with Coilhose's Megaflow product line and are engineered to deliver much higher flow than comparably sized standard-design couplers and connectors, and are ideal for PB&E (Paint Body & Equipment) and other high-CFM applications. (Gray body with red ring)

SPECIFICATIONS
  Industrial Safety Megaflow™
Air flow at 100 PSI 45 CFM 45 CFM 78 CFM
Temperature Range 5° F - 160° F 5° F - 160° F 5° F - 160° F
Working Pressure 175 PSI 175 PSI 175 PSI
Function Single Release Double Release Single Release
Locking Device 2 Pawls 4 Pawls 2 Pawls

Model Description
150C 1/4" FPT Industrial Coupler
152C 1/4" MPT Industrial Coupler
150CSE 1/4" FPT Safety Industrial Coupler
152CSE 1/4" MPT Safety Industrial Coupler
110C 1/4" FPT Megaflow™ Coupler
112C 1/4" MPT Megaflow™ Coupler
