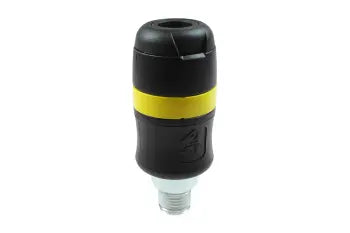

152CSE by Coilhose | Non-Marring Composite Coupler | Safety Industrial Coupler | 1/4" Male NPT Thread | Composite

152CSE by Coilhose | Non-Marring Composite Coupler | Safety Industrial Coupler | 1/4" Male NPT Thread | Composite

Save $35.52 Save $35.52
$88.80
$88.80 - $88.80
$88.80
$53.28
$53.28 - $53.28
$53.28
Coilhose Pneumatics - Couplers & Connectors - Non-Marring Composite Couplers - Automatic - Industrial, Safety, and Megaflow™
Specifications for Variant SKU: 152CSE Coilhose
Material(s): Composite
Overview:
  • These Non-Marring Couplers are manufactured out of a heavy-duty, high-impact fiberglass composite, which protects finished surfaces from scratching and marring that can occur with brass or steel couplers. These automatic couplers are available in three varieties: Industrial, Safety and Megaflow™.
  • Industrial Composite Couplers can be used with any standard Industrial Interchange connector. (Gray body with blue ring)
  • Safety Composite Couplers can be used with any standard Industrial Interchange connector, but offer additional protection against "hose whip" upon disconnection by safely bleeding off air line pressure through a two-step release mechanism. (Black body with yellow ring)
  • Megaflow™ Composite Couplers can be used with Coilhose's Megaflow product line and are engineered to deliver much higher flow than comparably sized standard-design couplers and connectors, and are ideal for PB&E (Paint Body & Equipment) and other high-CFM applications. (Gray body with red ring)

SPECIFICATIONS
  Industrial Safety Megaflow™
Air flow at 100 PSI 45 CFM 45 CFM 78 CFM
Temperature Range 5° F - 160° F 5° F - 160° F 5° F - 160° F
Working Pressure 175 PSI 175 PSI 175 PSI
Function Single Release Double Release Single Release
Locking Device 2 Pawls 4 Pawls 2 Pawls

Model Description
150C 1/4" FPT Industrial Coupler
152C 1/4" MPT Industrial Coupler
150CSE 1/4" FPT Safety Industrial Coupler
152CSE 1/4" MPT Safety Industrial Coupler
110C 1/4" FPT Megaflow™ Coupler
112C 1/4" MPT Megaflow™ Coupler
Coilhose Pneumatics

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
