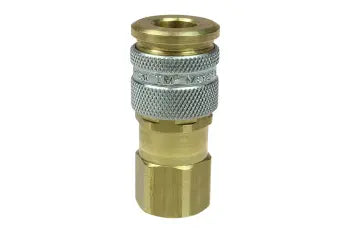

111 by Coilhose | Megaflow™ Automatic High Flow Series Coupler | Automatic | 1/4" Body Size | 3/8" Female NPT Thread | Straight | Brass (Type 11)

Save $2.47

$22.24

$22.24 - $22.24

$22.24

$19.77

$19.77 - $19.77

$19.77

Coilhose Pneumatics - Couplers & Connectors - Automatic - Euro/Megaflow™ High Flow Series 1/4" Body Size (Type 11)

Quantity

Specifications for Variant SKU: 111 Coilhose
Brand:	Megaflow
Shape (Orientation):	Straight
Material(s):	Brass

Overview:
Megaflow™ high flow series is engineered to allow twice the flow of comparably-sized standard design couplers and connectors. One-handed push-to-connect design allows for easy operation. Megaflow™ couplers can be used with any Type 15 series connectors in an emergency.
Features:
Automatic Couplers offer a durable connection with years of service. Connectors are machined from steel, then plated to provide years of service. Steel connectors offer a harder sealing surface that is more resistance to dings and scratches. Plated Steel Construction Contains Sealing Surface, Even in Adverse Conditions. Easy, One-Handed Connection Knurled body enhances grip. Made in USA

Body Size:	1/4"	Type:	Type 11
Interchange:	Euro/Megaflow™	Style:	Automatic
Locking Device:	5 Stainless Balls	Internal Valve:	Zinc-Plated Steel
Body Material:	Couplers: Brass Connectors: Zinc-Plated Steel	Sleeve Material:	Hardened Steel
Maximum Input Pressure:	220 PSI	Temperature Range:	-40°F to 250°F
Seals:	Nitrile (Buna N)

Thread & Barb Size	Part No. Female		Part No. Male		Part No. Hose Barb
	Coupler	Connector	Coupler	Connector	Coupler	Connector

1/4"	110	1102	112	1101	113	1106
3/8"	111	1105	-	1103	116	1108

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.

Shop Parts by Coilhose Pneumatics
