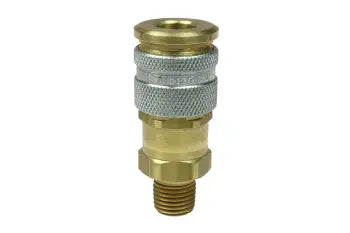

112 by Coilhose | Megaflow™ Automatic High Flow Series Coupler | Automatic | 1/4" Body Size | 1/4" Male NPT Thread | Straight | Brass (Type 11)

Save $2.30

$20.66

$20.66 - $20.66

$20.66

$18.36

$18.36 - $18.36

$18.36

Coilhose Pneumatics - Couplers & Connectors - Automatic - Euro/Megaflow™ High Flow Series 1/4" Body Size (Type 11)

Quantity

Specifications for Variant SKU: 112 Coilhose
Brand:	Megaflow
Shape (Orientation):	Straight
Material(s):	Brass

Overview:
Megaflow™ high flow series is engineered to allow twice the flow of comparably-sized standard design couplers and connectors. One-handed push-to-connect design allows for easy operation. Megaflow™ couplers can be used with any Type 15 series connectors in an emergency.
Features:
Automatic Couplers offer a durable connection with years of service. Connectors are machined from steel, then plated to provide years of service. Steel connectors offer a harder sealing surface that is more resistance to dings and scratches. Plated Steel Construction Contains Sealing Surface, Even in Adverse Conditions. Easy, One-Handed Connection Knurled body enhances grip. Made in USA

Body Size:	1/4"	Type:	Type 11
Interchange:	Euro/Megaflow™	Style:	Automatic
Locking Device:	5 Stainless Balls	Internal Valve:	Zinc-Plated Steel
Body Material:	Couplers: Brass Connectors: Zinc-Plated Steel	Sleeve Material:	Hardened Steel
Maximum Input Pressure:	220 PSI	Temperature Range:	-40°F to 250°F
Seals:	Nitrile (Buna N)

Thread & Barb Size	Part No. Female		Part No. Male		Part No. Hose Barb
	Coupler	Connector	Coupler	Connector	Coupler	Connector

1/4"	110	1102	112	1101	113	1106
3/8"	111	1105	-	1103	116	1108
