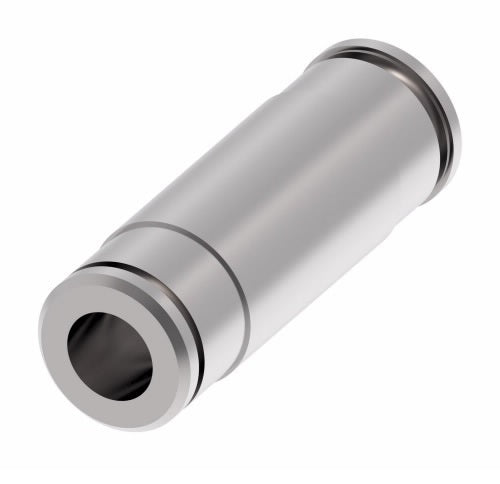

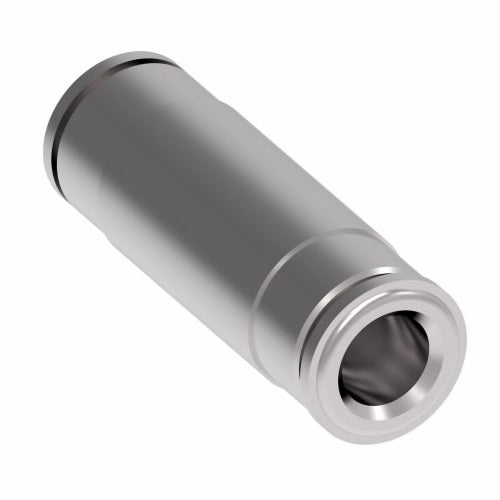

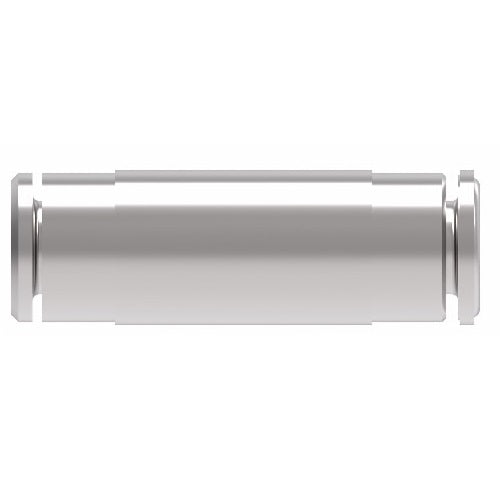

1162X10M by Danfoss | Metric Push to Connect Adapter | Union | 10mm Tube OD | Nickel Plated Brass

1162X10M by Danfoss | Metric Push to Connect Adapter | Union | 10mm Tube OD | Nickel Plated Brass

Name: 1162X10M by Danfoss | Metric Push to Connect Adapter | Union | 10mm Tube OD | Nickel Plated Brass
Brand: Danfoss/Eaton
SKU: 1162X10M Danfoss
Price: 16.03 USD
Availability: InStock

$16.03 - $16.03

$16.03

$16.03 - $16.03

$16.03

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Union

Quantity

Specifications for Variant SKU: 1162X10M Danfoss
Shape (Orientation):	Straight
Material(s):	Nickel Plated Brass
Compatible with the following Series:	MTP160 Series

Applications:
Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
Ease of assembly. No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
MTP160 nylon tubing.
Material:
Brass, Nickel Plated O-Ring: Buna-N
Pressure:
Up to 250 psi depending on tube size.
Temperature Range:
-40°F to 200°F (-40°C to 93°C).

Nominal Size	2	4	5MM	6	8
Thread
MM (Metric Screw Thread)			M5x.8
BSPT	1/8 (2PT)	1/4 (4PT)		3/8 (6PT)	1/2 (8PT)
BSPP	1/8 (2PP)	1/4 (4PP)		3/8 (6PP)	1/2


Nickel Plated Brass Part Number	Tube OD (mm)	F	G	L	N
1162X4M	4mm	8.40mm	9mm	29.0mm	14.0mm
1162X5M	5mm	9.80mm	11mm	32.0mm	15.0mm
1162X6M	6mm	11.70mm	12mm	34.0mm	15.5mm
1162X8M	8mm	13.70mm	14mm	37.0mm	17.5mm
1162X10M	10mm	15.40mm	17mm	41.5mm	20.0mm
1162X12M	12mm	18.3mm	19mm	43.5mm	21.0mm
