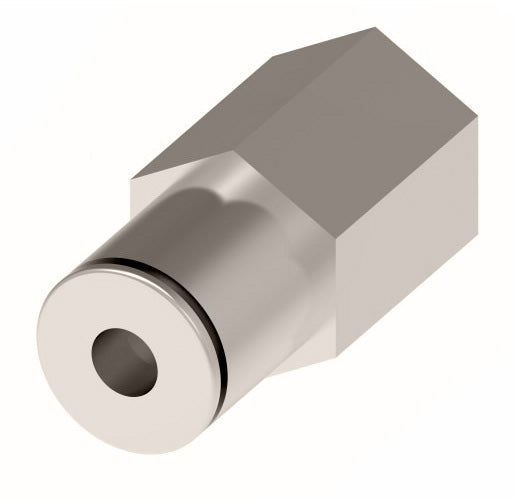

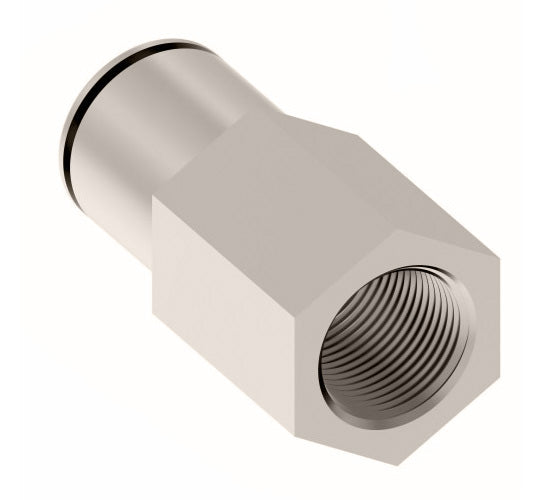

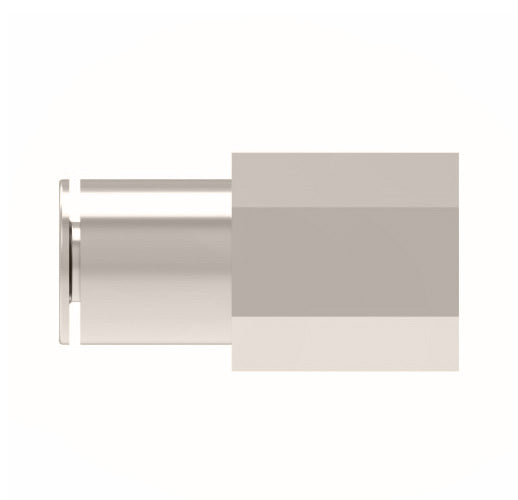

1166X4MX2PP by Danfoss | Metric Push to Connect Adapter | Female Connector | 4mm Tube OD x 1/8" Female BSPP | Nickel Plated Brass
1166X4MX2PP by Danfoss | Metric Push to Connect Adapter | Female Connector | 4mm Tube OD x 1/8" Female BSPP | Nickel Plated Brass
1166X4MX2PP by Danfoss | Metric Push to Connect Adapter | Female Connector | 4mm Tube OD x 1/8" Female BSPP | Nickel Plated Brass
1166X4MX2PP by Danfoss | Metric Push to Connect Adapter | Female Connector | 4mm Tube OD x 1/8" Female BSPP | Nickel Plated Brass

1166X4MX2PP by Danfoss | Metric Push to Connect Adapter | Female Connector | 4mm Tube OD x 1/8" Female BSPP | Nickel Plated Brass

$11.20 - $11.20
$11.20
$11.20 - $11.20
$11.20

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Female Connector
Specifications for Variant SKU: 1166X4MX2PP Danfoss
Shape (Orientation): Straight
Ends Configuration: 4mm Push-to-Connect, 1/8in Female BSPP
Material(s): Nickel Plated Brass
Compatible with the following Series: MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		     M5x.8
BSPT 1/8 (2PT) 1/4 (4PT)   3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP)   3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 Male BSPP Thread C F G H L SW
(mm)
1166X4MX2PP 4mm 1/8" 10.0mm 9.0mm 13.0mm 7.5mm 24.0mm 12mm
1166X4MX5MM
Metric Thread		 4mm M5* 6.5mm 7.8mm 8.8mm 5.0mm 20.5mm 8mm
1166X6MX4PP 6mm 1/4" 11.5mm 11.9mm 16.5mm 11.0mm 27.5mm 15mm
1166X8MX2PP 8mm 1/8" 9.5mm 13.7mm 15.2mm 7.5mm 27.0mm 14mm
1166X8MX4PP 8mm 1/4" 11.5mm 13.7mm 16.5mm 11.0mm 29.0mm 15mm
1166X10MX4PP 10mm 1/4" 11.5mm 15.7mm 18.5mm 11.0mm 31.5mm 17mm

* M5x0.8 is M profile thread. Seals with nylon washer (included).
