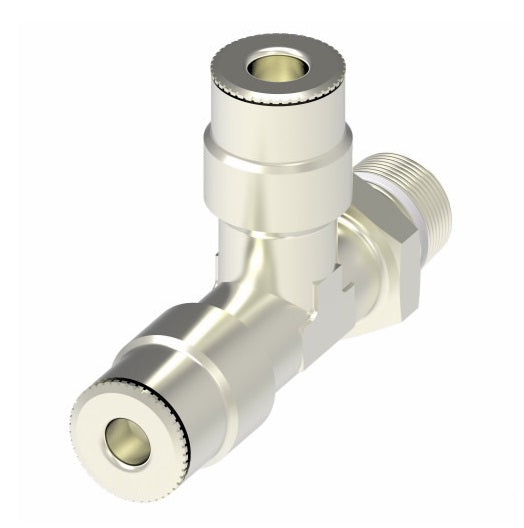

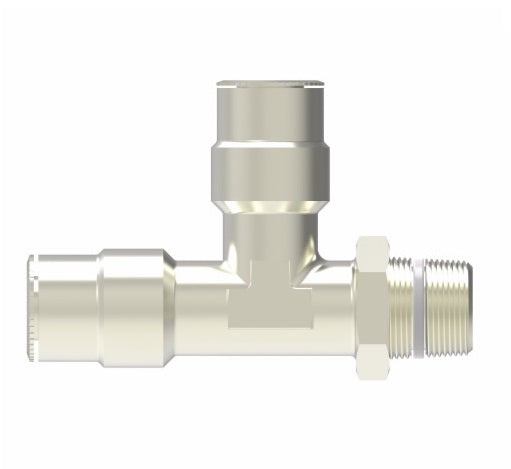

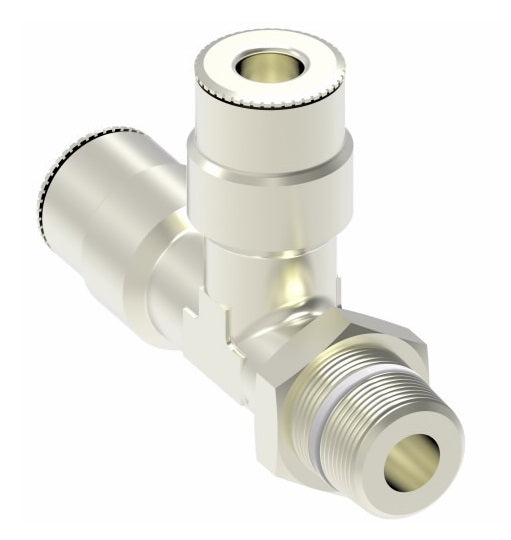

1171X12MX6PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Run Tee (Universal BSPT/BSPP) | 12mm Tube OD x 3/8" Male BSPT x 12mm Tube OD | Nickel Plated Brass
1171X12MX6PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Run Tee (Universal BSPT/BSPP) | 12mm Tube OD x 3/8" Male BSPT x 12mm Tube OD | Nickel Plated Brass
1171X12MX6PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Run Tee (Universal BSPT/BSPP) | 12mm Tube OD x 3/8" Male BSPT x 12mm Tube OD | Nickel Plated Brass
1171X12MX6PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Run Tee (Universal BSPT/BSPP) | 12mm Tube OD x 3/8" Male BSPT x 12mm Tube OD | Nickel Plated Brass

1171X12MX6PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Run Tee (Universal BSPT/BSPP) | 12mm Tube OD x 3/8" Male BSPT x 12mm Tube OD | Nickel Plated Brass

$37.38 - $37.38
$37.38
$37.38 - $37.38
$37.38

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Swivel Male Run Tee
Specifications for Variant SKU: 1171X12MX6PTS Danfoss
Shape (Orientation): Tee
Ends Configuration: 12mm Push-to-Connect, 3/8in Male BSPT, 12mm Push-to-Connect, Some Ends Match
Material(s): Nickel Plated Brass
Special Properties: Swivel
Compatible with the following Series: MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		 M5x.8
BSPT 1/8 (2PT) 1/4 (4PT) 3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP) 3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 Male BSPT
Thread Size		 C E F H I M SW
(mm)		 SW1
(mm)
1171X4MX2PTS 4mm 1/8" 3.5mm 14.5mm 9.0mm 5.5mm 37.5mm 17.5mm 8mm 12mm
1171X6MX2PTS 6mm 1/8" 4.0mm 15.0mm 12.7mm 5.5mm 40.0mm 20.0mm 9mm 12mm
1171X6MX4PTS 6mm 1/4" 4.0mm 15.0mm 12.7mm 7.0mm 41.5mm 20.0mm 9mm 14mm
1171X8MX6PTS 8mm 3/8" 5.0mm 16.5mm 14.0mm 8.0mm 47.0mm 22.5mm 13mm 19mm
1171X10MX4PTS 10mm 1/4" 6.5mm 18.5mm 16.5mm 7.0mm 52.0mm 26.5mm 13mm 14mm
1171X10MX6PTS 10mm 3/8" 6.5mm 18.5mm 16.5mm 8.0mm 53.5mm 26.5mm 15mm 19mm
1171X12MX6PTS 12mm 3/8" 7.5mm 19.5mm 19.5mm 8.0mm 56.5mm 28.5mm 16mm 19mm
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
