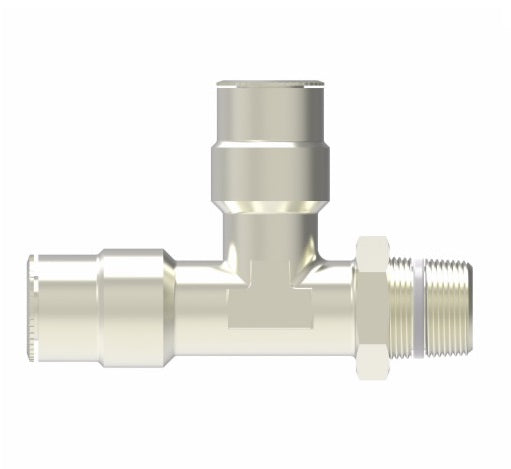

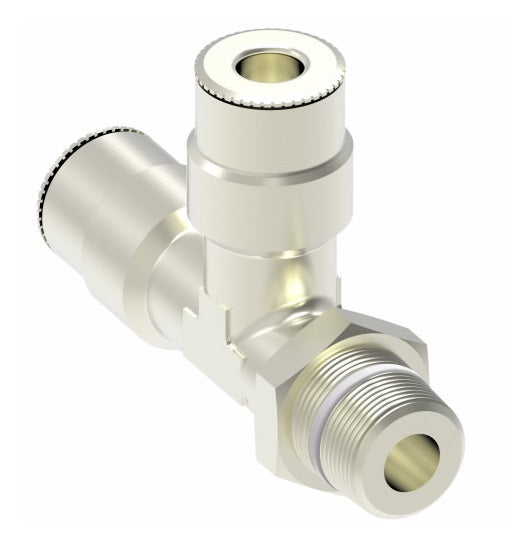

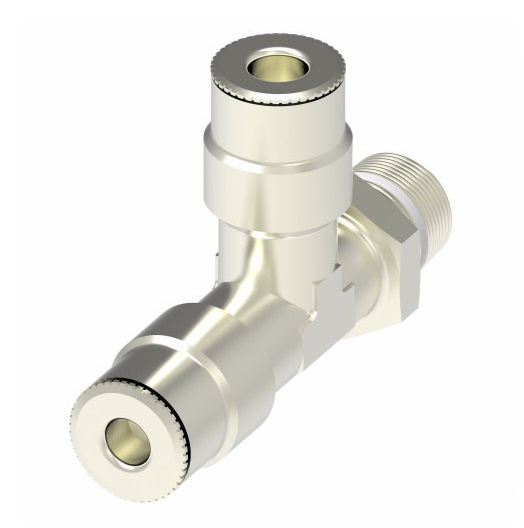

1171X6MX4PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Run Tee (Universal BSPT/BSPP) | 6mm Tube OD x 1/4" Male BSPT x 6mm Tube OD | Nickel Plated Brass
1171X6MX4PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Run Tee (Universal BSPT/BSPP) | 6mm Tube OD x 1/4" Male BSPT x 6mm Tube OD | Nickel Plated Brass
1171X6MX4PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Run Tee (Universal BSPT/BSPP) | 6mm Tube OD x 1/4" Male BSPT x 6mm Tube OD | Nickel Plated Brass
1171X6MX4PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Run Tee (Universal BSPT/BSPP) | 6mm Tube OD x 1/4" Male BSPT x 6mm Tube OD | Nickel Plated Brass

1171X6MX4PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Run Tee (Universal BSPT/BSPP) | 6mm Tube OD x 1/4" Male BSPT x 6mm Tube OD | Nickel Plated Brass

$20.82 - $20.82
$20.82
$20.82 - $20.82
$20.82

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Swivel Male Run Tee
Specifications for Variant SKU: 1171X6MX4PTS Danfoss
Shape (Orientation): Tee
Ends Configuration: 6mm Push-to-Connect, 1/4in Male BSPT, 6mm Push-to-Connect, Some Ends Match
Material(s): Nickel Plated Brass
Special Properties: Swivel
Compatible with the following Series: MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		 M5x.8
BSPT 1/8 (2PT) 1/4 (4PT) 3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP) 3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 Male BSPT
Thread Size		 C E F H I M SW
(mm)		 SW1
(mm)
1171X4MX2PTS 4mm 1/8" 3.5mm 14.5mm 9.0mm 5.5mm 37.5mm 17.5mm 8mm 12mm
1171X6MX2PTS 6mm 1/8" 4.0mm 15.0mm 12.7mm 5.5mm 40.0mm 20.0mm 9mm 12mm
1171X6MX4PTS 6mm 1/4" 4.0mm 15.0mm 12.7mm 7.0mm 41.5mm 20.0mm 9mm 14mm
1171X8MX6PTS 8mm 3/8" 5.0mm 16.5mm 14.0mm 8.0mm 47.0mm 22.5mm 13mm 19mm
1171X10MX4PTS 10mm 1/4" 6.5mm 18.5mm 16.5mm 7.0mm 52.0mm 26.5mm 13mm 14mm
1171X10MX6PTS 10mm 3/8" 6.5mm 18.5mm 16.5mm 8.0mm 53.5mm 26.5mm 15mm 19mm
1171X12MX6PTS 12mm 3/8" 7.5mm 19.5mm 19.5mm 8.0mm 56.5mm 28.5mm 16mm 19mm
