1183XAXA by Danfoss | Push to Connect Adapter | Female Banjo | 10-32 Female UNF | Nickel Plated Brass

1183XAXA by Danfoss | Push to Connect Adapter | Female Banjo | 10-32 Female UNF | Nickel Plated Brass

Name: 1183XAXA by Danfoss | Push to Connect Adapter | Female Banjo | 10-32 Female UNF | Nickel Plated Brass
Brand: Danfoss/Eaton
SKU: 1183XAXA Danfoss
Price: 9.15 USD
Availability: InStock

$9.15 - $9.15

$9.15

$9.15 - $9.15

$9.15

Aeroquip® by Danfoss

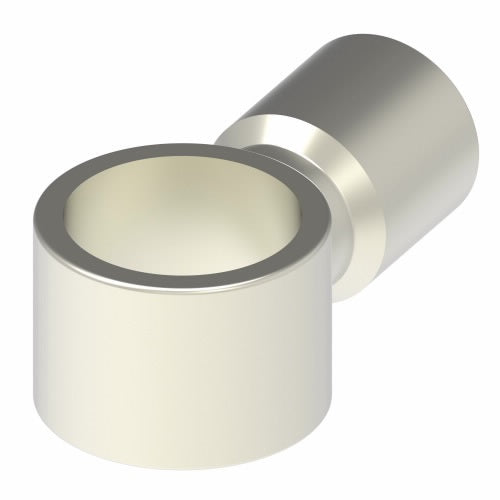

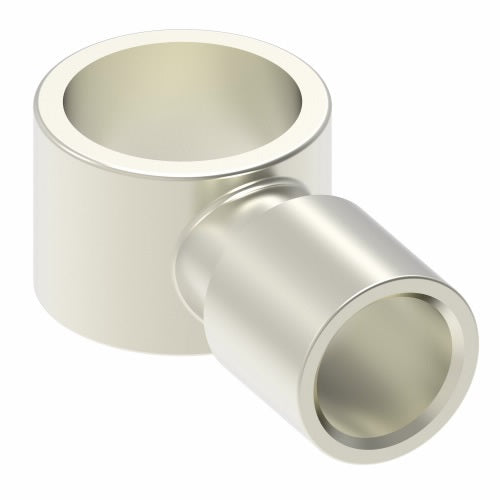

Push to Connect Adapter - Female Banjo

Specifications for Variant SKU: 1183XAXA Danfoss
Shape (Orientation):	Banjo
Material(s):	Nickel Plated Brass
Compatible with the following Series:	PT230 Series \| TP160 Series \| PT240 Series

Applications:
Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
Ease of assembly. No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
Brass, Nickel Plated O-Ring: Buna-N
Pressure:
Up to 250 psi depending on tube size.
Temperature Range:
When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
Fittings rated at 29.5 inches of mercury vacuum.


Nickel Plated Brass Part Number	Female Pipe Thread A	V	O	M	W
1183XAXA	10-32*	10-32	0.35"	0.41"	0.35"
1183X4X4	1/4"	1/4"	0.57"	1.00"	0.71"
1183X6X6	3/8"	3/8"	0.57"	1.10"	0.83"

* UNF Thread. Seals with nylon washer (included).
