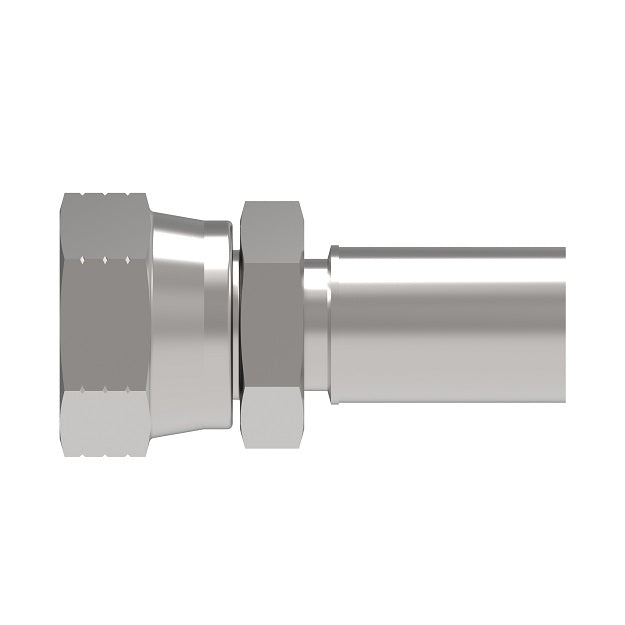

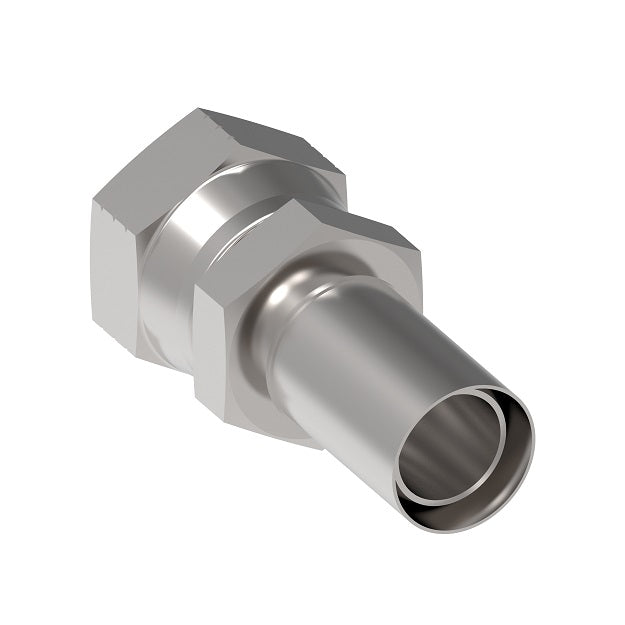

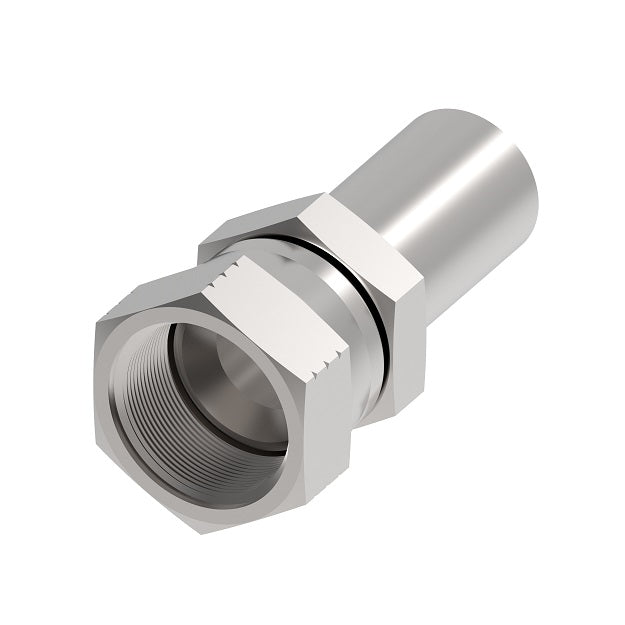

12-612-C by Danfoss | Conv-O-Crimp | Female 37° JIC Swivel Convoluted Hose Fitting | -12 Female 37° JIC Swivel x -12 Hose Barb | Carbon Steel
12-612-C by Danfoss | Conv-O-Crimp | Female 37° JIC Swivel Convoluted Hose Fitting | -12 Female 37° JIC Swivel x -12 Hose Barb | Carbon Steel
12-612-C by Danfoss | Conv-O-Crimp | Female 37° JIC Swivel Convoluted Hose Fitting | -12 Female 37° JIC Swivel x -12 Hose Barb | Carbon Steel
12-612-C by Danfoss | Conv-O-Crimp | Female 37° JIC Swivel Convoluted Hose Fitting | -12 Female 37° JIC Swivel x -12 Hose Barb | Carbon Steel

12-612-C by Danfoss | Conv-O-Crimp | Female 37° JIC Swivel Convoluted Hose Fitting | -12 Female 37° JIC Swivel x -12 Hose Barb | Carbon Steel

$65.38 - $65.38
$65.38
$65.38 - $65.38
$65.38

Conv-O-Crimp by Danfoss
Crimp Fitting for Everflex Hose - Female 37° JIC Swivel - Straight
Specifications for Variant SKU: 12-612-C Danfoss
Ends Configuration: 3/4in Female JIC, 3/4in Hose Barb
Material(s): Carbon Steel
Compatible with the following Series: Conv-O-Crimp Series
About:
  • The unique Everflex Conv-O-Crimp hose end are shipped with factory-installed Teflon™ fluoropolymer sleeves on the insert. This eliminates the time consuming, costly and subjective step of wrapping the hose end with Teflon™ fluoropolymer tape before assembly. The end result is a hose assembly system that is second to none in ease of assembly fabrication.
WARNING:
  • Selection of the proper end fitting for the hose end application is essential to the proper operation and safe use of the hose and related equipment. Inadequate attention to the selection of the end fittings for your application can result in leaking or the hose end blowing off the hose, leading to serious personal injury, death or property damage.
Compatible Hose:
  • Conv-O-Crimp Hose
Part Number
Insert: 316 S.S.
Nut & Collar: 304 S.S.		 Part Number
Insert: 316 S.S.
Nut: 304 S.S.
Collar: Carbon Steel		 Part Number
All Components: Carbon Steel		 Hose Size Hose ID Thread Overall Length
A		 Hose Cut-Off Factor** Nominal ID
12-612-A 12-612-B 12-612-C -12 3/4" 1-1/6-12 2.01" 1.46" 0.625"
16-616-A 16-616-B 16-616-C -16 1" 1-5/16-12 2.14" 1.55" 0.828"
- - 20-620-C -20 1-1/4" 1-5/8-12 2.20" 1.64" 1.078"
24-624-A - 24-624-C -24 1-1/2" 1-7/8-12 2.27" 1.81" 1.305"
- - 32-632-C -32 2" 2-1/2-12" 2.62" 2.10" 1.781"

** To determine the correct length of hose, subtract the cut-off factor for each end fitting from the overall length of assembly.

Note: Drawings may differ from actual parts.
