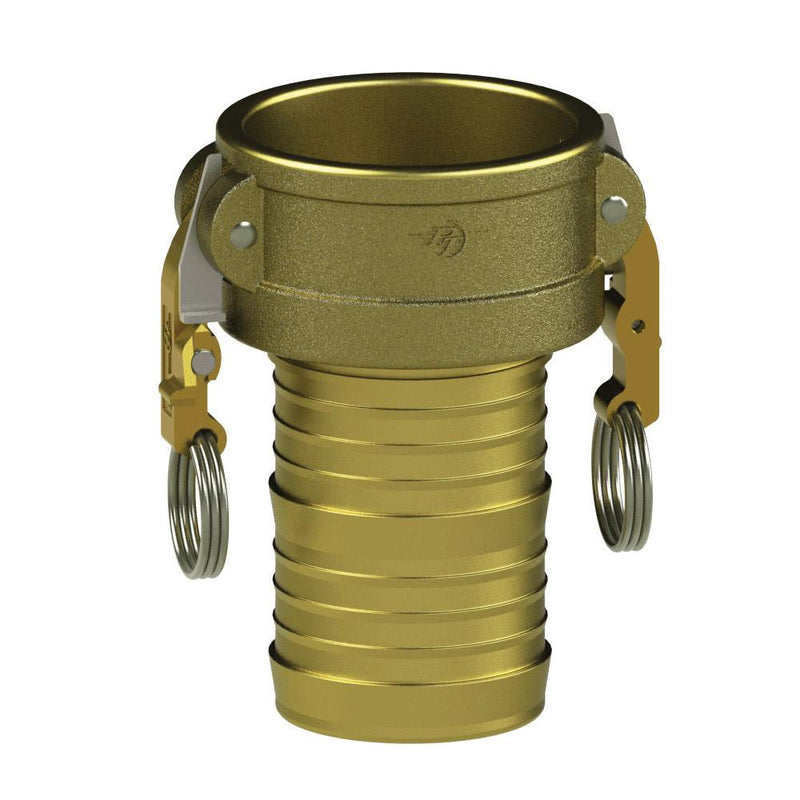

1200320L2 (20C SLII) by PT-Coupling | STA-LOK® II Cam & Groove Fitting | Type C | 2" Coupler x 2" Hose Shank | Brass/SLB | Buna-N Seal

Save $15.01

$135.09

$135.09 - $135.09

$135.09

$120.08

$120.08 - $120.08

$120.08

PT Coupling
STA-LOK® II Cam & Groove (Camlock) Fitting | Type C | Coupler x Hose Shank | Brass/SLB | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 1200320L2 PT-Coupling
Series:	STA-LOK II
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	2in Female Cam & Groove, 2in Hose Barb
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile

Overview:
STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
SLB cam arms are made of Brass. Pins, rings & the lock plate in STA-LOK® II couplings are 300 series Stainless Steel. Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA


Part Name	Item #	Coupler Size	Hose Shank Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Min. Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
10C SLII	1200310L2	1"	1"	5.10"	2.44"	4.06"	1.56"	0.78"	0.69"	250 PSI
12C-SLII	1200312L2	1-1/4"	1-1/4"	6.86"	3.26"	4.44"	1.84"	0.97"	0.88"	250 PSI
15C-SLII	1200315L2	1-1/2"	1-1/2"	7.16"	3.56"	4.82"	1.88"	1.22"	1.15	250 PSI
20C-SLII	1200320L2	2"	2"	7.54"	3.94"	5.53"	2.15"	1.71"	1.60"	250 PSI
25C-SLII	1200325L2	2-1/2"	2-1/2"	8.03"	4.43"	5.93"	2.18"	2.16"	2.06"	200 PSI
30C-SLII	1200330L2	3"	3"	9.56"	5.46"	6.32"	2.27"	2.65"	2.55"	200 PSI
40C-SLII	1200340L2	4"	4"	10.66"	6.56"	6.64"	2.34"	3.53"	3.43"	150 PSI
60C-SLII	1200360L2	6"	6"	16.26"	10.16"	9.50"	2.70"	5.53"	5.43"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
