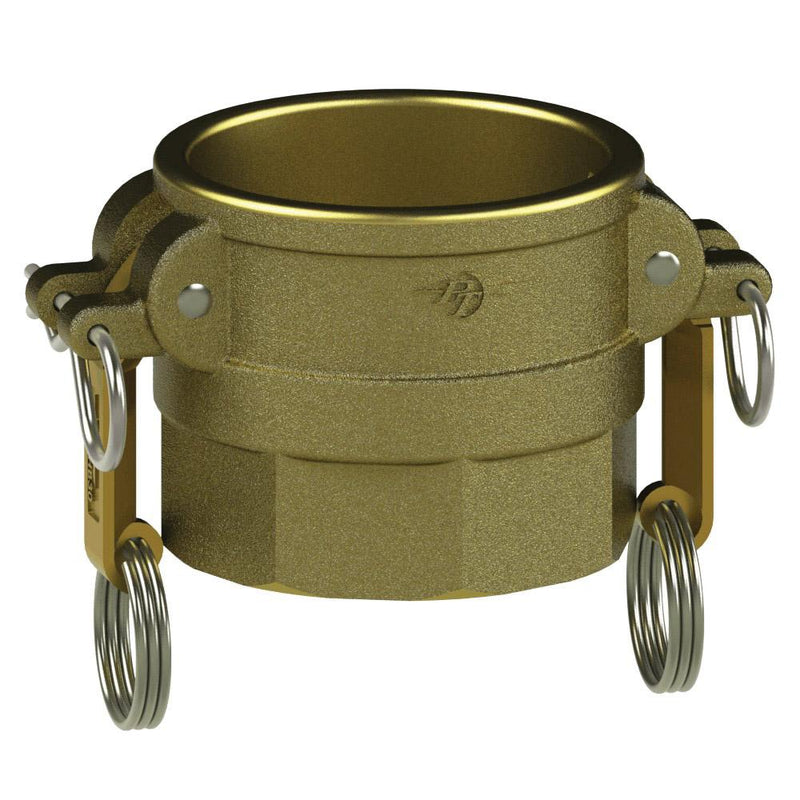

1200410SL (10DSL) by PT-Coupling | STA-LOK Cam & Groove Fitting | Type DSL | 1" Coupler x 1" Female NPT | Brass/HB | Buna-N Seal

1200410SL (10DSL) by PT-Coupling | STA-LOK® Cam & Groove Adapter | Type DSL | 1" Coupler x 1" Female NPT | Brass/HB | Buna-N Seal

Save $31.89

$85.93

$85.93 - $85.93

$85.93

$54.04

$54.04 - $54.04

$54.04

PT Coupling
STA-LOK Cam & Groove (Camlock) Adapter | Type DSL | Coupler x Female NPT | Brass/HB | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1200410SL PT-Coupling
Series:	STA-LOK
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	1in Female Cam & Groove, 1in Female NPT
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile

Overview:
STA-LOK® is a positive locking feature that comes with Carbon Steel or Stainless Steel hitch pin clips. You may also substitute a padlock in place of the hitch pin clip. Proper use of these mechanisms can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
HB cam arms are made of Brass. All standard components are 300 series Stainless Steel. Standard Cam assemblies in HB and HBS may be used on all STA-LOK® parts. Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Coupler Size	Female NPT Thread	Max. Allowable Working Press. (PSI)*
10DSL	1200410SL	1"	1"	250 PSI
12DSL	1200412SL	1-1/4"	1-1/4"	250 PSI
15DSL	1200415SL	1-1/2"	1-1/2"	250 PSI
20DSL	1200420SL	2"	2"	250 PSI
20DSL	1200425SL	2-1/2"	2-1/2"	200 PSI
30DSL	1200430SL	3"	3"	200 PSI
40DSL	1200440SL	4"	4"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
