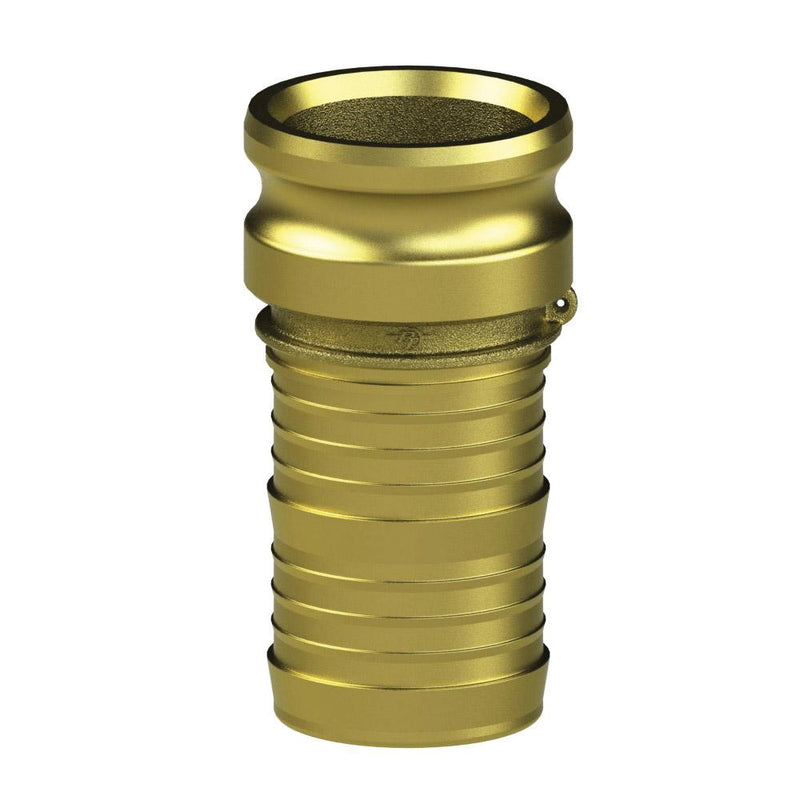

1200507 (07E) by PT-Coupling | Cam & Groove Fitting | Type E | 3/4" Adapter x 3/4" Hose Shank | Brass

1200507 (07E) by PT-Coupling | Cam & Groove Fitting | Type E | 3/4" Adapter x 3/4" Hose Shank | Brass

Save $15.33 Save $15.33
$38.32
$38.32 - $38.32
$38.32
$22.99
$22.99 - $22.99
$22.99

PT Coupling
Cam and Groove (Camlock) Fitting | Type E | Adapter x Hose Shank | Brass

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 1200507 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 3/4in Male Cam & Groove, 3/4in Hose Barb
Material(s): Brass
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • PT hose shanks are the most versatile for attaching to hose. The specially designed multibarbed shank allows for attachment via original PUNCH-LOK® center punch clamps, or by an interlocked PROGRIP™ C-50 ferrule or sleeve.
  • Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals.
  • Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products.
  • Couplings not interchangeable in the industry are sizes 8" through 12".
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Hose Shank
Size		 Outside
Diameter
(B)		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*
E05E 1200501 1/2" 1/2" 0.96" 2.56" 1.11" 0.38" 1.03" 250 PSI
1/2E 1200505 3/4" 1/2" 1.26" 3.21" 1.46" 0.35" 0.97" 250 PSI
07E 1200507 3/4" 3/4" 1.26" 3.78" 1.46" 0.53" 0.97" 250 PSI
10E 1200510 1" 1" 1.63" 4.30" 1.8" 0.88" 1.19" 250 PSI
12E 1200512 1-1/4" 1-1/4" 2.00" 4.90" 2.35" 0.97" 1.44" 250 PSI
15E 1200515 1-1/2" 1-1/2" 2.14" 5.10" 2.15" 1.19" 1.48" 250 PSI
20E 1200520 2" 2" 2.64" 5.75" 2.40" 1.68" 1.75" 250 PSI
25E 1200525 2-1/2" 2-1/2" 3.07" 6.63" 2.47" 2.13" 1.75" 200 PSI
30E 1200530 3" 3" 3.70" 6.88" 2.53" 2.62" 1.84" 200 PSI
40E 1200540 4" 4" 4.71" 7.20" 2.60" 3.50" 1.87" 150 PSI
60E 1200560 6" 6" 7.10" 10.10" 3.3" 5.53" 2.19" 75 PSI
80E 1200580 8" 8" 9.10" 10.10" 3.3" 7.53" 2.15" 50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
