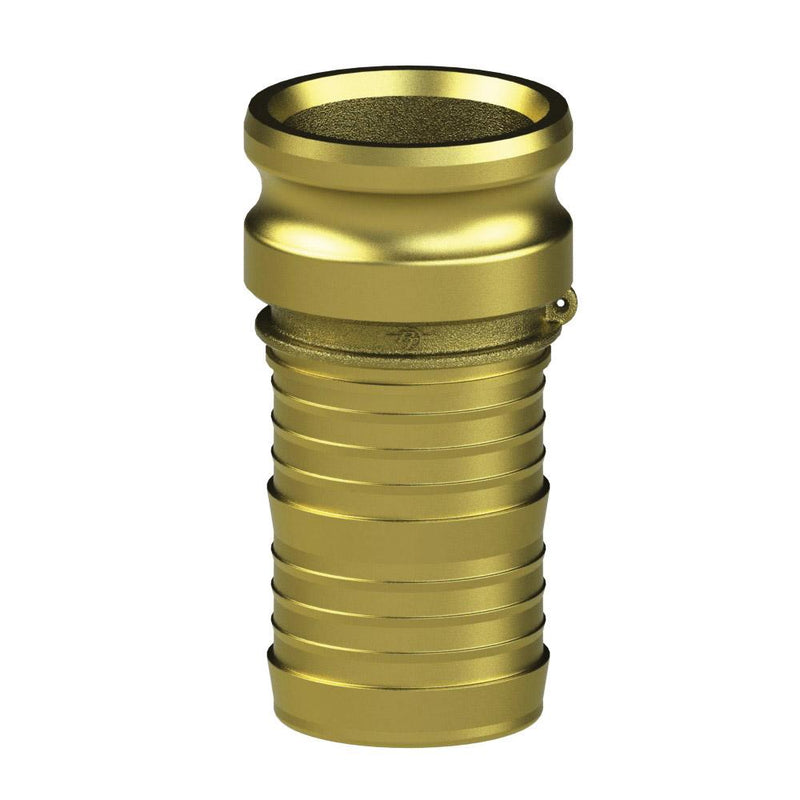

1200520 (20E) by PT-Coupling | Cam & Groove Fitting | Type E | 2" Adapter x 2" Hose Shank | Brass

Name: 1200520 (20E) by PT-Coupling | Cam & Groove Fitting | Type E | 2" Adapter x 2" Hose Shank | Brass
Brand: PT-Coupling
SKU: 1200520 PT-Coupling
Price: 68.27 USD
Availability: InStock

Save $45.51

$113.78

$113.78 - $113.78

$113.78

$68.27

$68.27 - $68.27

$68.27

PT Coupling
Cam and Groove (Camlock) Fitting | Type E | Adapter x Hose Shank | Brass

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 1200520 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	2in Male Cam & Groove, 2in Hose Barb
Material(s):	Brass

Overview:
PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
PT hose shanks are the most versatile for attaching to hose. The specially designed multibarbed shank allows for attachment via original PUNCH-LOK® center punch clamps, or by an interlocked PROGRIP™ C-50 ferrule or sleeve. Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Couplings not interchangeable in the industry are sizes 8" through 12". Made in the USA


Part Name	Item #	Adapter Size	Hose Shank Size	Outside Diameter (B)	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Engagement Length	Max. Allowable Working Press. (PSI)*
E05E	1200501	1/2"	1/2"	0.96"	2.56"	1.11"	0.38"	1.03"	250 PSI
1/2E	1200505	3/4"	1/2"	1.26"	3.21"	1.46"	0.35"	0.97"	250 PSI
07E	1200507	3/4"	3/4"	1.26"	3.78"	1.46"	0.53"	0.97"	250 PSI
10E	1200510	1"	1"	1.63"	4.30"	1.8"	0.88"	1.19"	250 PSI
12E	1200512	1-1/4"	1-1/4"	2.00"	4.90"	2.35"	0.97"	1.44"	250 PSI
15E	1200515	1-1/2"	1-1/2"	2.14"	5.10"	2.15"	1.19"	1.48"	250 PSI
20E	1200520	2"	2"	2.64"	5.75"	2.40"	1.68"	1.75"	250 PSI
25E	1200525	2-1/2"	2-1/2"	3.07"	6.63"	2.47"	2.13"	1.75"	200 PSI
30E	1200530	3"	3"	3.70"	6.88"	2.53"	2.62"	1.84"	200 PSI
40E	1200540	4"	4"	4.71"	7.20"	2.60"	3.50"	1.87"	150 PSI
60E	1200560	6"	6"	7.10"	10.10"	3.3"	5.53"	2.19"	75 PSI
80E	1200580	8"	8"	9.10"	10.10"	3.3"	7.53"	2.15"	50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
