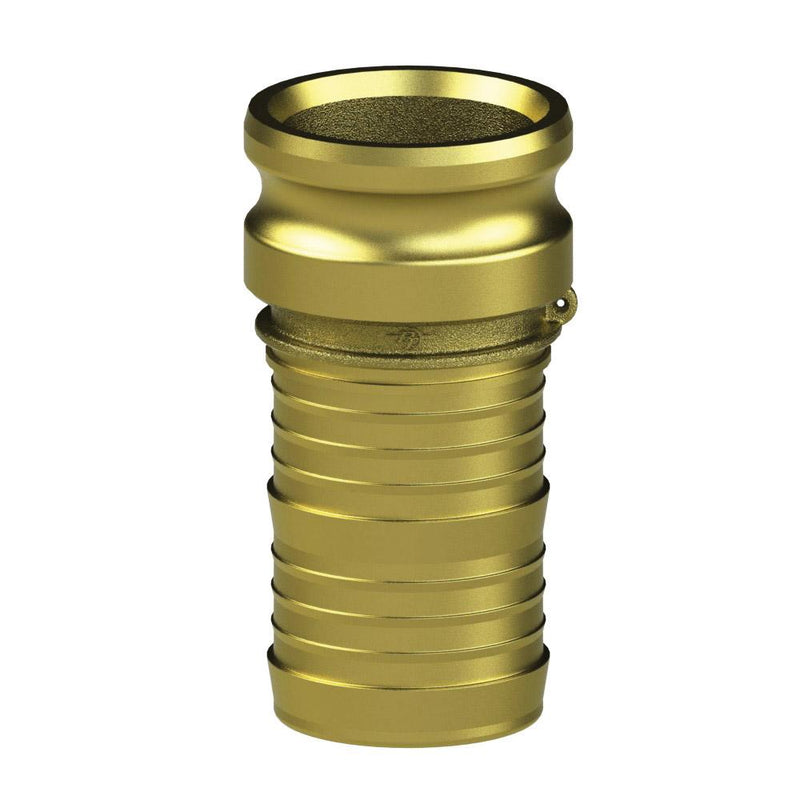

1200540H (40EHD) by PT-Coupling | Heavy Duty Cam & Groove Fitting | Type EHD | 4" Adapter x 4" Hose Shank | Brass | Buna-N Seal

Save $160.53

$432.45

$432.45 - $432.45

$432.45

$271.92

$271.92 - $271.92

$271.92

PT Coupling
Heavy Duty Cam & Groove (Camlock) Fitting | Type EHD | Adapter x Hose Shank | Brass | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1200540H PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	4in Male Cam & Groove, 4in Hose Barb
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. 2-1/2" and smaller couplers come standard with 2 cam arms while 3" and larger couplers come with 4 STA-LOK® II cam arms. Made in the USA

Part Name	Item #	Heavy Duty Adapter	Hose Shank Size	Max. Allowable Working Press. (PSI)*
40EHD	1200540H	4"	4"	300 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
