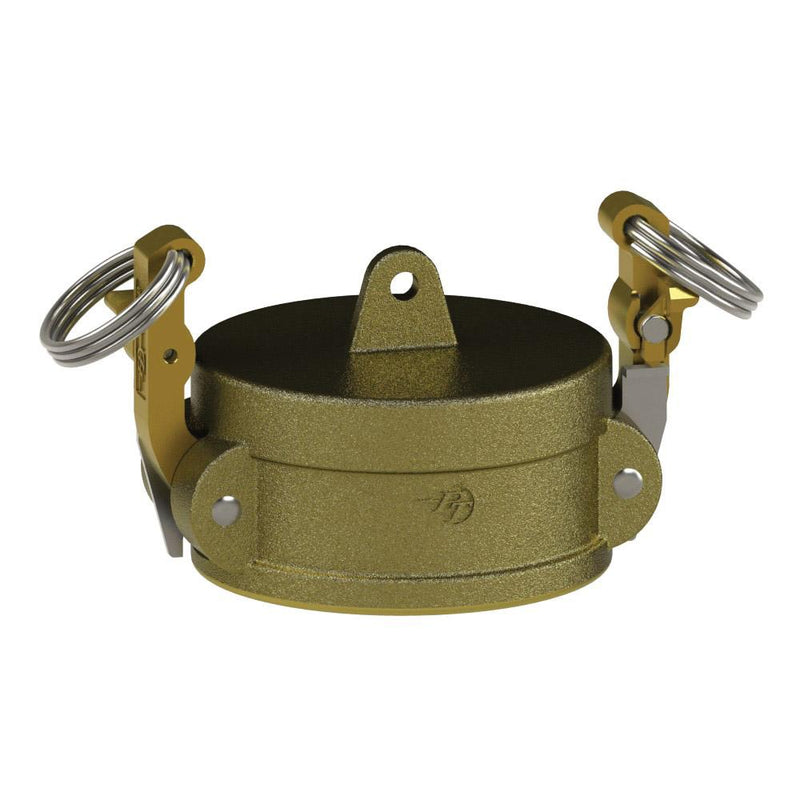

1201120L2 (20V SLII) by PT-Coupling | STA-LOK® II Cam & Groove Dust Cap | Type V | 2" Coupler | Brass/SLB

Name: 1201120L2 (20V SLII) by PT-Coupling | STA-LOK® II Cam & Groove Dust Cap | Type V | 2" Coupler | Brass/SLB
Brand: PT-Coupling
SKU: 1201120L2 PT-Coupling
Price: 87.87 USD
Availability: InStock

Save $10.98

$98.85

$98.85 - $98.85

$98.85

$87.87

$87.87 - $87.87

$87.87

PT Coupling
STA-LOK® II Cam & Groove (Camlock) Dust Cap | Type V | Brass/SLB

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 1201120L2 PT-Coupling
Series:	STA-LOK II
Cam Type:	Type DC
Ends Configuration:	2in Female Cam & Groove
Material(s):	Brass

Overview:
STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
SLB cam arms are made of Brass. Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA


Part Name	Item #	Coupler Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Chain Lug Extension (G)	Max. Allowable Working Press. (PSI)*
10V SLII	1201110L2	1"	5.10"	2.44"	1.60"	0.62"	250 PSI
12V SLII	1201112L2	1-1/4"	6.86"	3.26"	1.89"	0.60"	250 PSI
15V SLII	1201115L2	1-1/2"	7.16"	3.56"	1.96"	0.86"	250 PSI
20V SLII	1201120L2	2"	7.54"	3.94"	2.25"	0.76"	250 PSI
25V SLII	1201125L2	2-1/2"	8.03"	4.43"	2.28"	0.90"	200 PSI
30V SLII	1201130L2	3"	9.56"	5.46"	2.27"	1.03"	200 PSI
40V SLII	1201140L2	4"	10.66"	6.56"	2.34"	0.99"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
