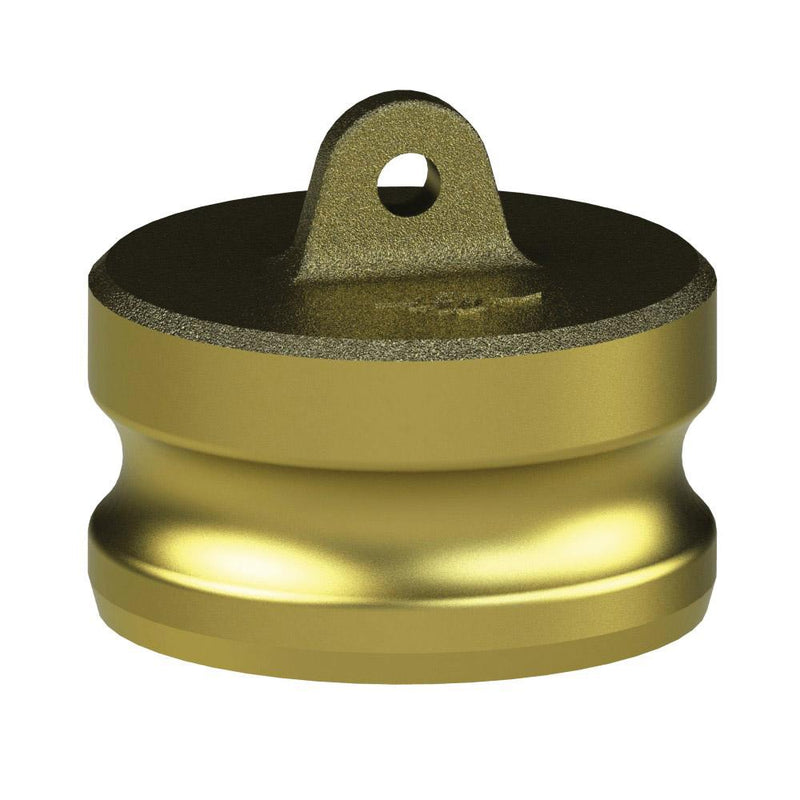

1201201 (E05W) by PT-Coupling | Cam & Groove Dust Plug | Type W | 1/2" Adapter | Brass

1201201 (E05W) by PT-Coupling | Cam & Groove Dust Plug | Type W | 1/2" Adapter | Brass

Save $2.52 Save $2.52
$22.69
$22.69 - $22.69
$22.69
$20.17
$20.17 - $20.17
$20.17

PT Coupling
Cam and Groove (Camlock) Dust Plug | Type W | Brass

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 1201201 PT-Coupling
Cam Type: Type DP
Ends Configuration: 1/2in Male Cam & Groove
Material(s): Brass
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals.
  • Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products.
  • Couplings not interchangeable in the industry are sizes 8" through 12"
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Overall
Length
(C)		 Chain Lug
Extension
(G)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*
E05W 1201201 1/2" 1.06" 0.50" 1.03" 250 PSI
07W 1201207 3/4" 1.41" 0.59" 0.97" 250 PSI
10W 1201210 1" 1.35" 0.96" 1.19" 250 PSI
12W 1201212 1-1/4" 1.94" 0.62" 1.44" 250 PSI
15W 1201215 1-1/2" 2.06" 0.50" 1.48" 250 PSI
20W 1201220 2" 1.90" 0.70" 1.75" 250 PSI
25W 1201225 2-1/2" 2.44" 0.81" 1.75" 200 PSI
30W 1201230 3" 2.03" 1.00" 1.84" 200 PSI
40W 1201240 4" 2.10" 1.00" 1.87" 150 PSI
50W 1201250 5" 2.63" 0.85" 1.97" 75 PSI
60W 1201260 6" 2.28" 1.00" 2.19" 75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
