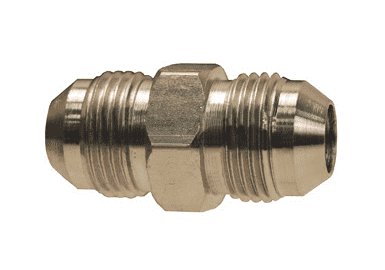

1204-12-12 Dixon Zinc Plated Steel 1-1/16"-12 Male 37° JIC x 1-1/16"-12 Male 37° JIC

1204-12-12 Dixon Valve Zinc Plated Steel 1-1/16"-12 Male 37° JIC x 1-1/16"-12 Male 37° JIC

Save $0.45 Save $0.45
$4.04
$4.04 - $4.04
$4.04
$3.59
$3.59 - $3.59
$3.59

SAE / JIC Fittings - Male 37° JIC x Male 37° JIC - Zinc Plated Steel
Specifications for Variant SKU: 1204-12-12 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/4in Male JIC, 3/4in Male JIC, Some Ends Match
Material(s): Zink-Plated Steel
Features:
  • Reference SAE 070101
Part Number JIC 37° Flare Thread JIC 37° Flare Thread Working Pressure* Weight (Lbs.)
1204-04-04 7/16"-20 7/16"-20 5000 PSI 0.0850
1204-06-06 9/16"-18 9/16"-18 5000 PSI 0.0600
1204-08-04 3/4"-16 7/16"-20 4500 PSI 0.1000
1204-08-08 3/4"-16 3/4"-16 4500 PSI 0.2200
1204-10-08 7/8"-14 3/4"-16 3500 PSI 0.1790
1204-10-10 7/8"-14 7/8"-14 3500 PSI 0.1900
1204-12-08 1-1/16"-12 3/4"-16 3500 PSI 0.2960
1204-12-10 1-1/16"-12 7/8"-14 3500 PSI 0.3100
1204-12-12 1-1/16"-12 1-1/16"-12 3500 PSI 0.3100
1204-16-12 1-5/16"-12 1-1/16"-12 3000 PSI 0.4800
1204-16-16 1-5/16"-12 1-5/16"-12 3000 PSI 0.5250
1204-20-20 1-5/8"-12 1-5/8"-12 2500 PSI 0.6800
1204-24-24 1-7/8"-12 1-7/8"-12 2000 PSI 1.0000
* Pressure rating at 70°F (21°C) WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
