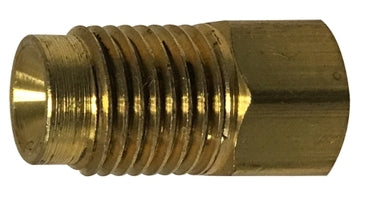

12220 (12-220) by Midland | Inverted Flare Auto Fitting | Dual Master Cylinder Adapter | 5/16" Male Inverted Thread x 1/4" Female Inverted Thread | Straight | Brass

Name: 12220 (12-220) by Midland | Inverted Flare Auto Fitting | Dual Master Cylinder Adapter | 5/16" Male Inverted Thread x 1/4" Female Inverted Thread | Straight | Brass
Brand: Midland Industries
SKU: 12220 Midland
Price: 3.4 USD
Availability: InStock

Save $2.27

$5.67

$5.67 - $5.67

$5.67

$3.40

$3.40 - $3.40

$3.40

Midland Industries
Brass Fitting - Inverted Flare Auto Fitting - Dual Master Cylinder Adapter - Male Inverted Thread x Female Inverted Thread - Brass

Inventory @ Manufacturers Warehouse: 368 Units

Specifications for Variant SKU: 12220 Midland
Shape (Orientation):	Straight
Ends Configuration:	5/16in Male Inverted Flare, 1/4in Female Inverted Flare, Some Ends Match
Material(s):	Brass
Applicable Specs & Approvals:	ASA, ASME, SAE, MS (Military Standards)

Applications:	Hydraulic brake, power steering, fuel lines and transmission cooler lines, LP and natural gas.	Used With:	Copper, brass, aluminum and steel hydraulic tubing that can be flared.
SAE Rating:	N/A	Conformance:	Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Vibration:	Excellent resistance.	Temperature Range:	-65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Advantages:	Very low cost and reusable. Seats and threads are internal and protected. Compact, excellent vibration life. Short nut affords very close tube bends.	Tolerance:	+/- .03 on all dimensions.

Working Pressure Ranges:
Temperature and type of tubing used are important factors. However, the following table is a good guide for proper selection. Temperature 73°F with copper tubing:
Assembly Instructions:
1) Cut tubing to desired length. Make sure all burrs are removed and ends are cut square. 2) Slide nut on tube. Threaded end "A" of nut must face out. 3) Flare end of tube with a 450 flaring tool. A) Measure flare diameter B) Examine flare for excessive thin out. C) On thin wall, welded or brazed tubing, use double flare to prevent pinch-off and cracked flares. 4) Lubricate threads and assemble to fitting body. Nut should be turned hand tight.


Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"	3/4"	7/8"	1"
Thread OD (Threads per inch)	5/16-28	3/8-24	7/16-24	1/2-20	5/8-18	11/16-18	3/4-18	7/8-18	1-1/16-16	1-3/16-16	1-5/16-16

Standard Metric Threads:
Description Tube Size	Thread OD	Crest (Pitch)	Thread Description
Japanese 3/16"	10mm	1.0mm	M10 x 1.0
European 3/16"	10mm	1.0mm	M10 x 1.0
GM 6mm	12mm	1.0mm	M12 x 1.0
Fuel 5/16"	14mm	1.5mm	M14 x 1.5
Fuel 3/8"	16mm	1.5mm	M16 x 1.5
Measuring Metric Threads: Measure the O.D. of the threads and the crest to crest distance (pitch) in millimeters between threads.

Crossover Series:
48STA	6641N	6011N


Part Number	Male Inverted Thread	Female Inverted Thread	Ref #
12206 (12-206)	3/16"(9/16-18)	3/16"	7911
12209 (12-209)	3/16"(9/16-18)	3/16"(1/2-20)	7913
12207 (12-207)	3/16"(9/16-20)	3/16"	7910
12210 (12-210)	3/16"	1/4"	7828
12212 (12-212)	1/4"	3/16"	7818
12214* (12-214)	7/16-20	1/4"	7732
12211 (12-211)	1/4"(9/16-18)	1/4"	7908
12215 (12-215)	1/4"	5/16"	7917
12213* (12-213)	5/16"	3/16"	7817
12216 (12-216)	5/16"	3/16"	7909
12208 (12-208)	5/16"	3/16"(9/16-18)	7912
12220 (12-220)	5/16"	1/4"	7829
12221 (12-221)	5/16"	3/8"	7915
12224 (12-224)	3/8" NPTF	5/16"	7771
12217 (12-217)	3/8"	5/16"	7916

* Seals on hex face
