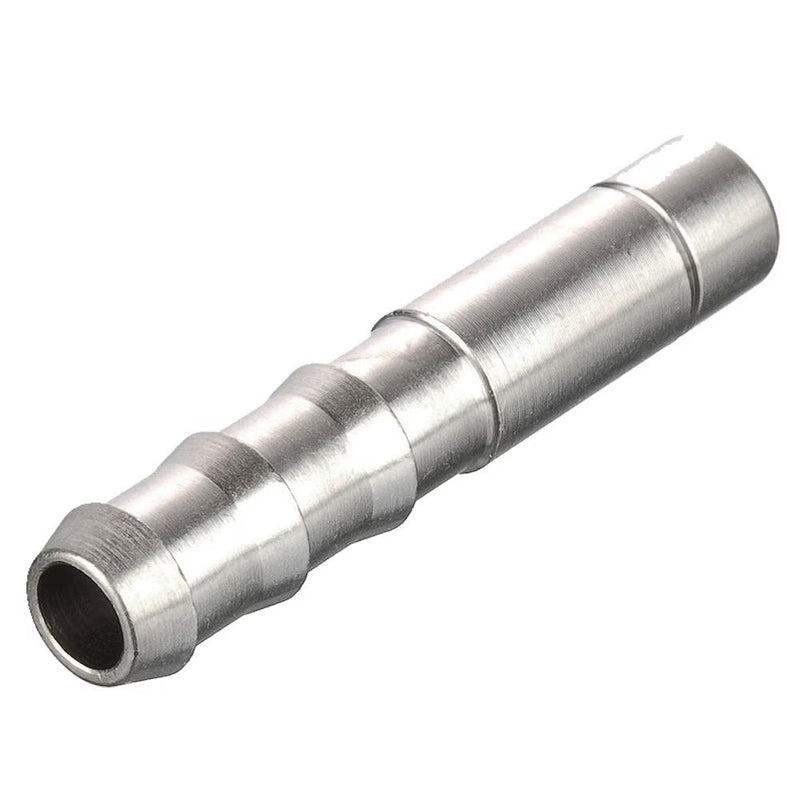

122PLMSP-6M-5M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Barbed Connector | 6 mm to 5.00 mm Tube Size | 43.00 mm Length | Straight | Electroless Nickel-Plated Brass | Pack of 10

Save $28.87

$72.17

$72.17 - $72.17

$72.17

$43.30

$43.30 - $43.30

$43.30

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:122PLMSP Plug-In Barbed Connector Metric

Package Quantity: 10 Units

Specifications for Variant SKU: 122PLMSP-6M-5M Parker \| 10 \|
Series:	122PLMSP Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Special Properties:	Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free

Product Features:	High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body FKM seal Chemical, corrosion, and abrasion resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Industrial Chemical Life Science Semi-conductors Automation Food Processing
Compatible Media:	Food Fluids Harsh Detergents Cleaning In Cold/Hot Water Steam Oils Compressed Air Inert Gases
Pressure Range:	Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLM
Vacuum Rating:	28" Hg
Temperature Range:	-13° to +302° F (-25° to +150° C)
Compatible Tubing:	Polyethylene Polyurethane 95 Durometer Shore A* Nylon FEP


Part Number	Tube Size 1	Tube Size 2	Tube Size 3	L	L1	L2
122PLMSP-4M-3M	4 mm	3.20 mm	5.00 mm	40.50 mm	27.00 mm	22.50 mm
122PLMSP-4M-5M	4 mm	5.00 mm	7.00 mm	40.50 mm	27.00 mm	22.50 mm
122PLMSP-6M-5M	6 mm	5.00 mm	7.00 mm	43.00 mm	27.00 mm	22.50 mm
122PLMSP-8M-6M	8 mm	6.30 mm	8.30 mm	42.00 mm	25.00 mm	22.50 mm
122PLMSP-8M-8M	8 mm	8.00 mm	10.00 mm	44.00 mm	27.00 mm	22.50 mm
122PLMSP-10M-6M	10 mm	6.30 mm	8.30 mm	47.50 mm	25.50 mm	22.50 mm
122PLMSP-10M-8M	10 mm	8.00 mm	10.00 mm	47.50 mm	25.50 mm	22.50 mm
122PLMSP-12M-8M	12 mm	8.00 mm	10.00 mm	48.50 mm	25.50 mm	22.50 mm
122PLMSP-12M-10M	12 mm	10.00 mm	12.00 mm	48.50 mm	25.50 mm	22.50 mm
122PLMSP-12M-12M	12 mm	10.00 mm	12.00 mm	48.50 mm	25.50 mm	29.50 mm
122PLMSP-14M-12M	14 mm	12.50 mm	14.50 mm	57.00 mm	34.00 mm	29.50 mm
122PLMSP-14M-14M	14 mm	14.00 mm	16.00 mm	59.50 mm	35.00 mm	29.50.50 mm
