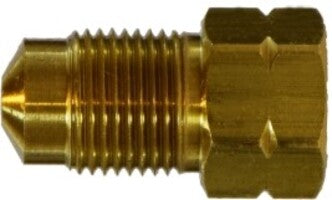

12328 (12-328) by Midland | Metric Hydraulic Brake Fitting | Metric Adapter | M16x1.5 Bubble Male Thread x 3/16" Tube OD Female Thread | Straight | Brass

12328 (12-328) by Midland | Metric Hydraulic Brake Fitting | Metric Adapter | M16x1.5 Bubble Male Thread x 3/16" Tube OD Female Thread | Straight | Brass

Save $6.90 Save $6.90
$17.25
$17.25 - $17.25
$17.25
$10.35
$10.35 - $10.35
$10.35

Midland Industries
Brass Fitting - Metric Hydraulic Brake Fitting - Metric Adapter - Brass

Inventory @ Manufacturers Warehouse: 1 Units
Specifications for Variant SKU: 12328 Midland
Shape (Orientation): Straight
Material(s): Brass
Applicable Specs & Approvals: ASA, ASME, SAE, MS (Military Standards)
Applications: Hydraulic brake, power steering, fuel lines and transmission cooler lines, LP and natural gas. Used With: Copper, brass, aluminum and steel hydraulic tubing that can be flared.
SAE Rating: N/A Conformance: Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Vibration: Excellent resistance. Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Advantages: Very low cost and reusable. Seats and threads are internal and protected. Compact, excellent vibration life. Short nut affords very close tube bends. Tolerance: +/- .03 on all dimensions.
Working Pressure Ranges:
  • Temperature and type of tubing used are important factors. However, the following table is a good guide for proper selection. Temperature 73°F with copper tubing:
Assembly Instructions:
  • 1) Cut tubing to desired length. Make sure all burrs are removed and ends are cut square.
  • 2) Slide nut on tube. Threaded end "A" of nut must face out.
  • 3) Flare end of tube with a 450 flaring tool.
    • A) Measure flare diameter
    • B) Examine flare for excessive thin out.
    • C) On thin wall, welded or brazed tubing, use double flare to prevent pinch-off and cracked flares.
  • 4) Lubricate threads and assemble to fitting body. Nut should be turned hand tight.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1"
Thread OD
(Threads per inch)		 5/16-28 3/8-24 7/16-24 1/2-20 5/8-18 11/16-18 3/4-18 7/8-18 1-1/16-16 1-3/16-16 1-5/16-16
Standard Metric Threads:
Description
Tube Size		 Thread OD Crest
(Pitch)		 Thread
Description
Japanese 3/16" 10mm 1.0mm M10 x 1.0
European 3/16" 10mm 1.0mm M10 x 1.0
GM 6mm 12mm 1.0mm M12 x 1.0
Fuel 5/16" 14mm 1.5mm M14 x 1.5
Fuel 3/8" 16mm 1.5mm M16 x 1.5
Measuring Metric Threads: Measure the O.D. of the threads and the crest to crest distance (pitch) in millimeters between threads.
Part Number Bubble Male Thread Tube O.D./ Female Thread A Hex Reference # Approx. Weight
(Lbs.)
12335
(12-335)		 M10x1.0 3/16"(3/8-24) 1.02" 0.50" 1442 0.02
12326
(12-326)		 M11x1.5 3/16"(M10x1.0) 1.06" 0.50" 7935 0.02
12327
(12-327)		 M12x1.0 3/16"(M10x1.0) 1.02" 0.53" 7936 0.04
12328
(12-328)		 M16x1.5 3/16"(M10x1.0) 1.02" 0.56" 7937 0.06
