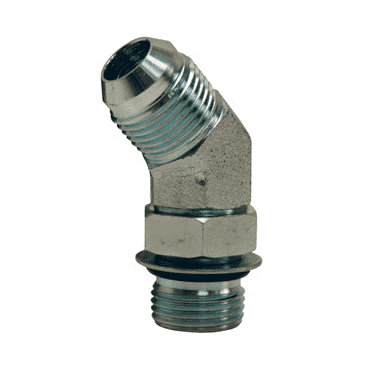

1240-06-08 Dixon Zinc Plated Steel 45 deg. 9/16"-18 Male SAE O-Ring Boss Thread x 3/4"-16 Male SAE Screw Thread

1240-06-08 Dixon Valve Zinc Plated Steel 45 deg. 9/16"-18 Male SAE O-Ring Boss Thread x 3/4"-16 Male SAE Screw Thread

Save $0.70 Save $0.70
$6.29
$6.29 - $6.29
$6.29
$5.59
$5.59 - $5.59
$5.59

ORB Fittings - 45 deg. Male SAE O-Ring Boss Thread x Male SAE Screw Thread - Zinc Plated Steel

Specifications for Variant SKU: 1240-06-08 Dixon
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Male O-Ring Boss, 1/2in Male JIC
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number SAE O-ring Boss Thread SAE Screw Thread Working Pressure Weight (Lbs.)
1240-04-04 7/16"-20 7/16"-20 5000 PSI 0.1200
1240-06-06 9/16"-18 9/16"-18 5000 PSI 0.1400
1240-06-08 9/16"-18 3/4"-16 4500 PSI 0.1600
1240-08-06 3/4"-16 9/16"-18 4500 PSI 0.1600
1240-08-08 3/4"-16 3/4"-16 4500 PSI 0.2200
1240-08-10 3/4"-16 7/8"-14 3500 PSI 0.2600
1240-10-08 7/8"-14 3/4"-16 3500 PSI 0.2600
1240-10-10 7/8"-14 7/8"-14 3500 PSI 0.3000
1240-10-12 7/8"-14 1-1/16"-12 3500 PSI 0.4490
1240-12-10 1-1/16"-12 7/8"-14 3500 PSI 1.0600
1240-12-12 1-1/16"-12 1-1/16"-12 3500 PSI 0.5200
1240-12-16 1-5/16"-12 1-5/16"-12 3000 PSI 0.7200
1240-16-16 1-5/16"-12 1-5/16"-12 3000 PSI 0.5250
1240-20-16 1-5/16"-12 1-5/16"-12 2500 PSI 1.3590
1240-20-20 1-5/8"-12 1-5/8"-12 2500 PSI 1.3600
