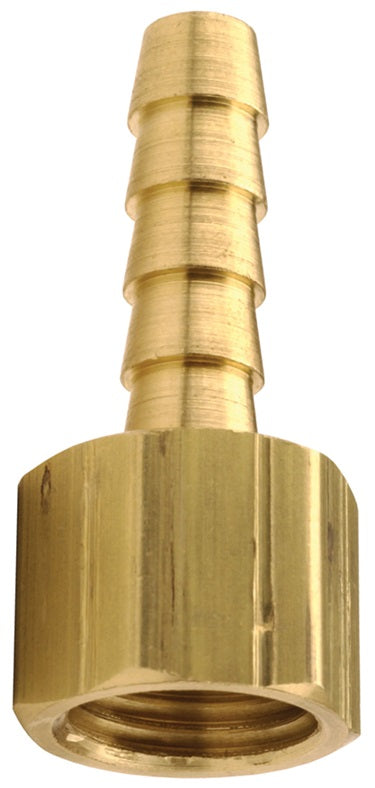

1240604K by Dixon Valve | Female Hose Barb Ball Seat Insert | 1/4" Female NPSM Swivel x 3/8" Hose ID | Brass

1240604K by Dixon Valve | Female Hose Barb Ball Seat Insert | 1/4" Female NPSM Swivel x 3/8" Hose ID | Brass

Save $1.31 Save $1.31
$3.28
$3.28 - $3.28
$3.28
$1.97
$1.97 - $1.97
$1.97

Dixon Valve
Female Hose Barb Ball Seat Insert | Female NPSM Swivel x Hose Barb
Specifications for Variant SKU: 1240604K Dixon
Series: 124 Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 1/4in Female NPSM
Material(s): Brass
Applicable Specs & Approvals: Swivel
Construction:
  • Ball seat type.
Safety Notes:
  • All standard hose fittings are intended for use with hose clamps or crimped ferrules.
Previous
Part Number		 Brass
Part Number		 Female NPSM Swivel Hose I.D.
BFS11 1240202K 1/8" 1/8"
BFS151 1240302K 1/8" 3/16"
BFS152 1240304K 1/4" 3/16"
BFS21 1240402K 1/8" 1/4"
BFS22 1240404K 1/4" 1/4"
BFS23 1240406K 3/8" 1/4"
BFS252 1240504K 1/4" 5/16"
BFS253 1240506K 3/8" 5/16"
BFS32 1240604K 1/4" 3/8"
BFS33 1240606K 3/8" 3/8"
BFS34 1240608K 1/2" 3/8"
BFS43 1240806K 3/8" 1/2"
BFS44 1240808K 1/2" 1/2"
BFS66 1241212K 3/4" 3/4"
