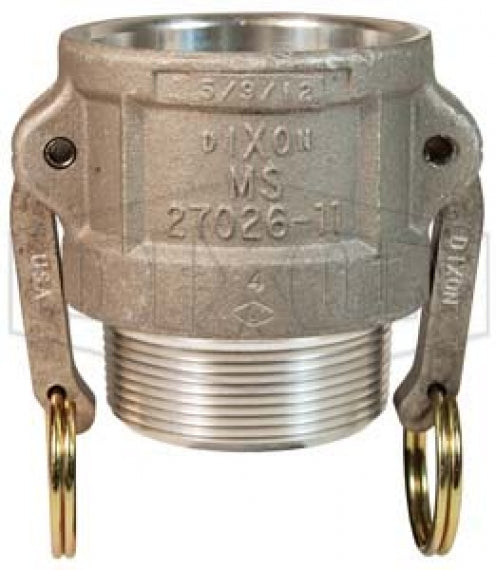

125-B-AL by Dixon Valve | Cam & Groove Coupler | Type B | 1-1/4" Coupler x 1-1/4" Male NPT | 356T6 Aluminum

125-B-AL by Dixon Valve | Cam & Groove Coupler | Type B | 1-1/4" Coupler x 1-1/4" Male NPT | 356T6 Aluminum

Save $0.81 Save $0.81
$36.14
$36.14 - $36.14
$36.14
$35.33
$35.33 - $35.33
$35.33

Dixon Valve
Cam & Groove Coupler | Type B | Coupler x Male NPT

Designed for use with liquids.
Specifications for Variant SKU: 125-B-AL Dixon
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 1-1/4in Female Cam & Groove, 1-1/4in Male NPT
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Precision machined to rigid tolerances.
  • Stainless pins will not rust or bind, providing great strength and safety.
  • Recess holds gasket firmly in place - ensures proper placement.
Construction:
  • Nitrile Rubber gasket.
  • Durable stainless steel cam arm pins.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Note:
  • Finger rings are not supplied.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • Dixon and Boss-Lock cam and groove couplings do not interchange in the 1/2" size.
Specifications:
  • No standard exists for the 1/2" fittings, and generally does not interchange with other manufacturers.
  • Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size The 8" Dixon design has 4 cam arms.
356T6 Aluminum
Part Number		 Aluminum
Hard Coat
Part Number		 Brass
Part Number		 Unplated
Malleable Iron
Part Number		 316 Stainless Steel
Part Number		 Size Max. Operating
Pressure
50-B-AL - 50-B-BR - 50-B-SS 1/2" 150 PSI
75-B-AL - 75-B-BR - 75-B-SS 3/4" 250 PSI
100-B-AL - 100-B-BR - 100-B-SS 1" 250 PSI
125-B-AL - - - - 1-1/4" 250 PSI
150-B-AL 150-B-ALH 150-B-BR 150-B-MI* 150-B-SS 1-1/2" 250 PSI
200-B-AL 200-B-ALH 200-B-BR 200-B-MI 200-B-SS 2" 250 PSI
250-B-AL - - - 250-B-SS 2-1/2" 150 PSI
300-B-AL 300-B-ALH 300-B-BR 300-B-MI* 300-B-SS 3" 125 PSI
400-B-AL 400-B-ALH 400-B-BR 400-B-MI 400-B-SS 4" 100 PSI
500-B-AL - - - - 5" 75 PSI
600-B-AL 600-B-ALH - - 600-B-SS 6" 75 PSI
800-B-AL** - - - - 8" 50 PSI

* Ductile Iron

** Parts are produced as a welded fabrication.
