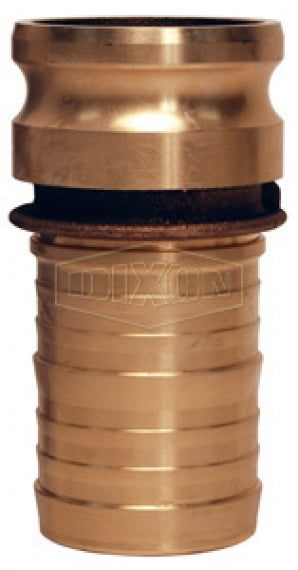

125-E-BR by Dixon Valve | Cam & Groove Fitting | Type E | 1-1/4" Adapter x 1-1/4" Hose Shank | Brass

Name: 125-E-BR by Dixon Valve | Cam & Groove Fitting | Type E | 1-1/4" Adapter x 1-1/4" Hose Shank | Brass
Brand: Dixon
SKU: 125-E-BR Dixon
Price: 50.48 USD
Availability: InStock

Save $3.87

$54.35

$54.35 - $54.35

$54.35

$50.48

$50.48 - $50.48

$50.48

Dixon Valve
Cam & Groove Fitting | Type E | Adapter x Hose Shank

Designed for use with liquids.

Quantity

Specifications for Variant SKU: 125-E-BR Dixon
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	1-1/4in Male Cam & Groove, 1-1/4in Hose Barb
Material(s):	Brass

Features:
Precision machined to rigid tolerances.
Safety Notes:
Dixon® and Boss-Lock cam & groove couplings do not interchange in the 8" size. Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating is based on the seal of the mating part. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	Aluminum Hard Coat Part Number	Brass Part Number	Unplated Malleable Iron Part Number	Plated Malleable Iron Part Number	316 Stainless Steel Part Number	Size	Max. Operating Pressure
50-E-AL	-	50-E-BR	-	-	50-E-SS	1/2"	150 PSI
-	-	-	-	-	7550-E-SS	3/4" x 1/2"	250 PSI
75-E-AL	-	75-E-BR	-	75-E-PM	75-E-SS	3/4"	250 PSI
100-E-AL	-	100-E-BR	-	100-E-PM	100-E-SS	1"	250 PSI
125-E-AL	-	125-E-BR	-	125-E-PM	125-E-SS	1-1/4"	250 PSI
150-E-AL	150-E-ALH	150-E-BR	150-E-MI	150-E-PM	150-E-SS	1-1/2"	250 PSI
200-E-AL	200-E-ALH	200-E-BR	200-E-MI †	200-E-PM †	200-E-SS	2"	250 PSI
250-E-AL	-	250-E-BR	-	-	250-E-SS	2-1/2"	150 PSI
300-E-AL	300-E-ALH	300-E-BR	300-E-MI* †	300-E-PM* †	300-E-SS	3"	125 PSI
400-E-AL	400-E-ALH	400-E-BR	400-E-MI* †	400-E-PM* †	400-E-SS	4"	100 PSI
500-E-AL	-	-	-	-	500-E-SS	5"	75 PSI
600-E-AL	600-E-ALH	600-E-BR	600-E-MI* †	600-E-PM* †	600-E-SS	6"	75 PSI
800-E-AL	-	-	-	-	-	8"	50 PSI
801-E-AL (Boss-Lock Style)	-	-	-	-	-	8"	50 PSI

* Suitable for King Crimp® sleeves and ferrules

† Ductile iron
