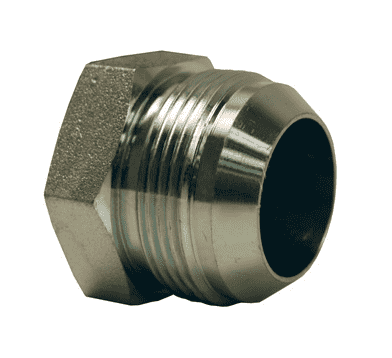

1254-06H Dixon Zinc Plated Steel JIC Screw Thread Plug - 9/16"-18 Thread Size

1254-06H Dixon Valve Zinc Plated Steel JIC Screw Thread Plug - 9/16"-18 Thread Size

Save $0.12 Save $0.12
$1.08
$1.08 - $1.08
$1.08
$0.96
$0.96 - $0.96
$0.96

SAE / JIC Fittings - JIC Screw Thread Plugs - Zinc Plated Steel
Specifications for Variant SKU: 1254-06H Dixon
Ends Configuration: 3/8in Male JIC
Material(s): Zink-Plated Steel
Features:
  • N/A.
Part Number Thread Size Working Pressure Weight (Lbs.)
1254-02H 5/16"-24 5000 PSI 0.0250
1254-04H 7/16"-20 5000 PSI 0.0290
1254-06H 9/16"-18 5000 PSI 0.0500
1254-08H 3/4"-16 4500 PSI 0.8700
1254-10H 7/8"-14 3500 PSI 0.8700
1254-12H 1-1/16"-12 3500 PSI 0.2300
1254-16H 1-5/16"-12 3000 PSI 0.3400
1254-20H 1-5/8"-12 2500 PSI 0.8200
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
