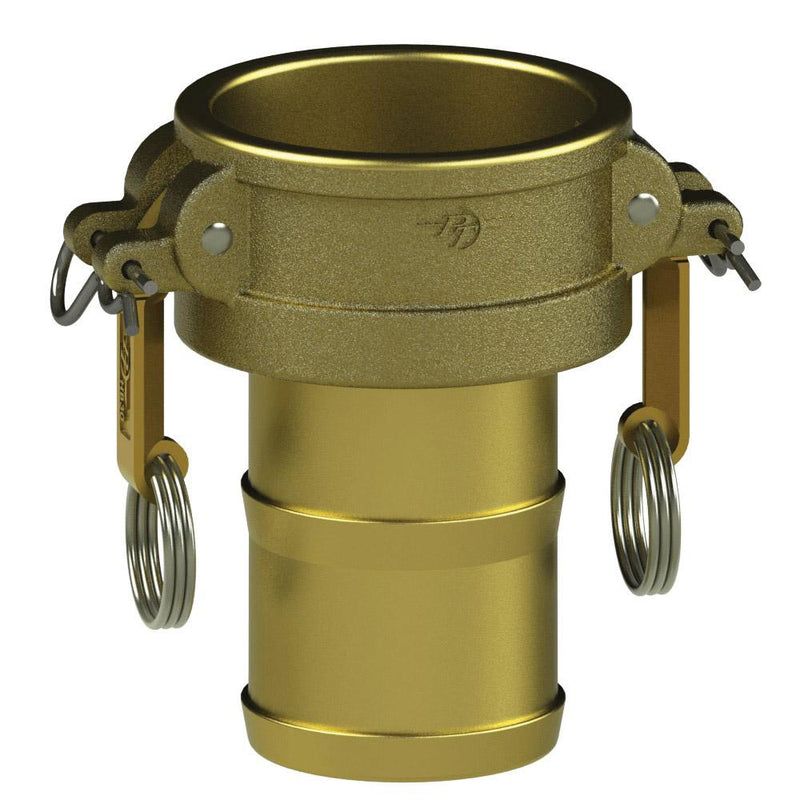

1290330SL (30CSL) by PT-Coupling | STA-LOK® Cam & Groove Fitting | Type CSL | 3" Coupler x 3" Hose Shank | Brass/HBS | Buna-N Seal

Save $20.56

$185.07

$185.07 - $185.07

$185.07

$164.51

$164.51 - $164.51

$164.51

PT Coupling
STA-LOK Cam & Groove (Camlock) Fitting | Type CSL | Coupler x Hose Shank | Brass/HBS | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 1290330SL PT-Coupling
Series:	STA-LOK
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	3in Female Cam & Groove, 3in Hose Barb
Seal Material(s):	Buna-N/Nitrile

Overview:
STA-LOK® is a positive locking feature that comes with Carbon Steel or Stainless Steel hitch pin clips. You may also substitute a padlock in place of the hitch pin clip. Proper use of these mechanisms can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
HBS cam arms are made of 300 series Stainless Steel. All standard components are 300 series Stainless Steel. Standard Cam assemblies in HB and HBS may be used on all STA LOK® parts. Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Coupler Size	Hose Shank Size	Max. Allowable Working Press. (PSI)*
15CSL	1290315SL	1-1/2"	1-1/2"	250 PSI
20CSL	1290320SL	2"	2"	250 PSI
30CSL	1290330SL	3"	3"	200 PSI
40CSL	1290340SL	4"	4"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
